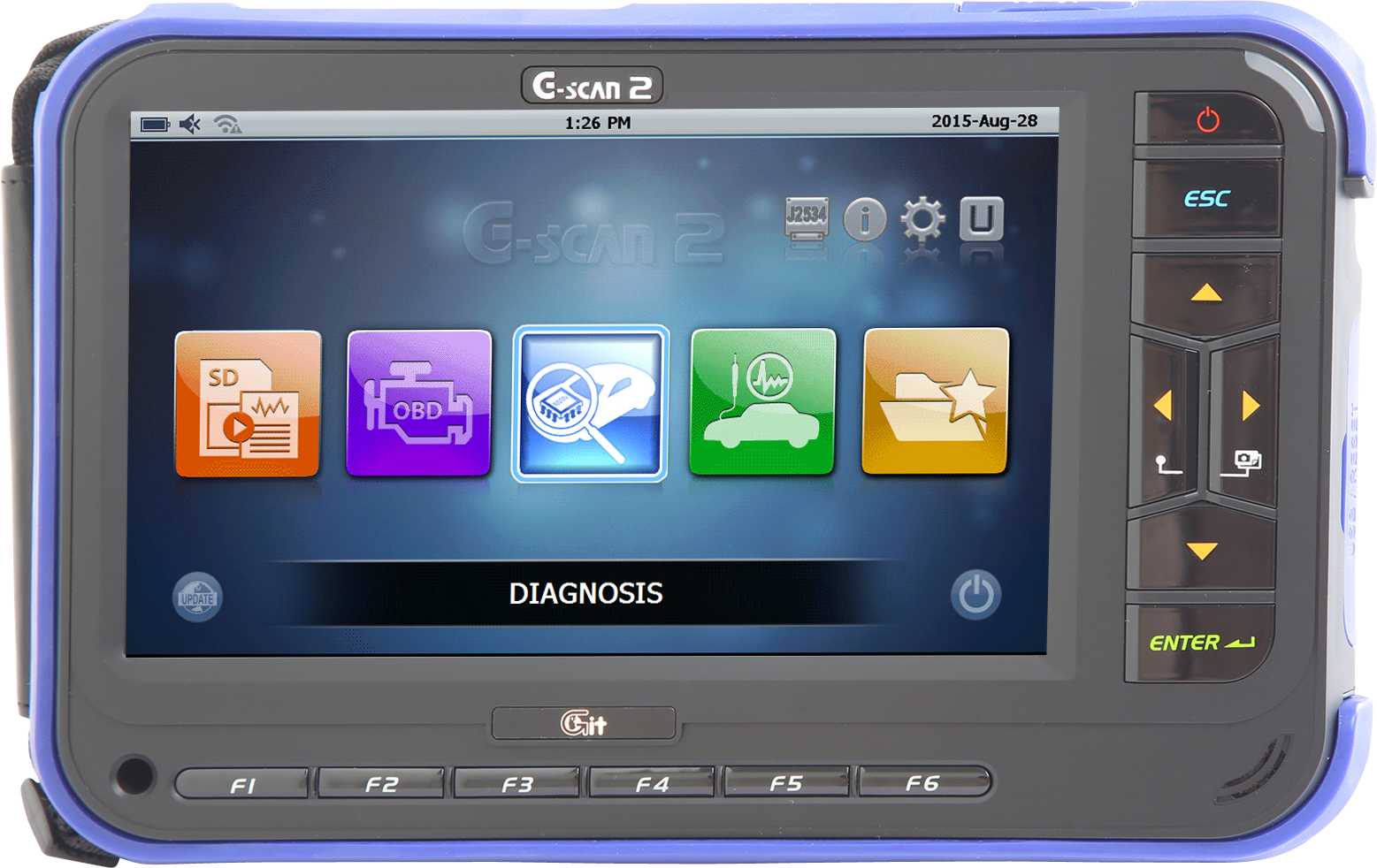

G-scan2

BEST JUST GOT BETTER


High definition larger LCD
WiFi and Bluetooth connectivity
4 channel scope and digital multi-meter
And the legacy of G-scan’s in-depth coverage
For Asian passenger cars and commercial vehicles

  • Features
  • Specification
  • Diagnostic Function
  • Measurement Function
  • Component
  • Triple CPU High Performance Structure

    Designed for fast boot-up and high performance by adopting 3 CPUs dedicated to computing, communication and measurement for each

    7” Sunlight Readable LCD

    7” high resolution 1024 X 600 LCD ensures striking readability with striking graphical display of diagnostic data and information.

    Wireless Connectivity

    G-scan2 can access to the internet and utilize smart update, quick feedback system, real-time PC interface, and direct printing

    16 GB SD Card memory

    The most widely used storage solution is applied, 16 GB SD Card sufficiently accommodates entire software applications and data

    Rechargeable Battery

    2100mAh Li-ion battery supplies power to G-scan2 for more than an hour under full load condition without external source

    Win CE 6.0 Operating System

    Latest Windows CE 6.0 provides improved smart phone style user interface, better networking and enhanced system security at the same time

    Solid and rigid design

    Designed to be used in the tough workshop environment. Check out the 4-point fastening main DLC and the 13 tactile keys

    24V Commercial Vehicles Support

    Asian commercial vehicles diagnosis is G-scan2 unique specialty. Make direct connection to the 24V system of buses and trucks

    Diagnostic S/W Fully Compatible with G-scan

    Sharing the same communication platform with G-scan, G-scan2 inherits G-scan’s outstanding diagnostic capability and performance

    Zero Second Boot-up

    For quick boot-up. G-scan2 supports Stand-by mode. Press the power button, and G-scan2 wakes up and gets ready for use instantly

  • G-scan2 Base Unit



    ㆍGeneral Specification

    Category Specifications
    Micro Controller Triple CPU Main control board ARM11 @ 600MHz
    Communication Board ARM9 @ 266MHz
    Measurement Board (Optional) ARM9 @ 266MHz
    System Memory Main Control Board NAND : Flash 128MB and SD RAM 256 MB
    Main Control Board NAND : Flash 32MB and SD RAM 8MB
    Main Control Board NAND : Flash 32MB and SD RAM 8MB
    External Memory 16GB SD Card
    LCD 7” TFT LCD (1024 X 600 pixel)
    Input Devices Touch Screen
    Power, Enter and ESC Keys
    4 way directional keys, F1 ~ F6 function keys
    Indication Lamps 3 Color LED
    Sound Suzzer and speaker
    Rechargeable Battery Li-lon Polymer 2100m Ah 1Cell
    Operating Voltage 7 ~ 35V DC (10~35V for charging)
    Housing Material PC + ABS resin with rubber shrouds
    Dimension 230 X 146 X 72 mm (with VMI pack mounted)
    Weight Approx. 1300g (with VMI pack mounted)

    ㆍConnectivity

    Category Specifications
    External COM port 1 X USB 2.0 standard (master) + 1 X mini USB (slave)
    WiFi Module On-board
    Blue Tooth On-board

    ㆍAC/DC Adapter

    Category Specifications
    Input Power 100 ~ 240V AC
    Frequency 50 / 60 Hz


    VMI2 (Vehicle Measurement Interface) - Advanced Labscope Pack

    Category Specifications
    Vertical Range 2 Channel Mode ±400 mV/ ±1V/ ±6V/ ±10V/ ±20V/ ±48V/ ±100V/ ±200V/ ±400V
    4 Channel Mode ±4V/ ±6V/ ±10V/ ±20V/ ±32V/ ±48V/ ±100V/ ±200V/ ±400V
    Vertical Resolution 12 bit
    Sampling Mode Normal / Peak Mode
    Ground Position Moving Supported
    AC/DC Coupling Supported
    Time Division 2 Channel Mode 1㎲, 2㎲, 5㎲, 10㎲, 20㎲, 50㎲, 100㎲, 200㎲, 500㎲, 1㎳, 2㎳, 5㎳, 10㎳, 20㎳, 50㎳, 100㎳, 200㎳, 500㎳, 1s, 2s, 5s
    4 Channel Mode 5㎲, 10㎲, 20㎲, 50㎲, 100㎲, 200㎲, 500㎲, 1㎳, 2㎳, 5㎳, 10㎳, 20㎳, 50㎳, 100㎳, 200㎳, 500㎳, 1s, 2s, 5s
    Save Type General Save Supported
    Precision Save Supported
    AUX Input Voltage 0 ~ 5V
    Sampling Speed Max 80MS/s

    ㆍDigital Multi-Meter

    Category Specifications
    Voltage ±0.5V / ±5V / ±50V / ±500V / Auto Range
    Resistance 1Ω ~ 10㏁ / Auto Range
    Frequency 3 Hz ~ 100 kHz
    Duty Cycle 1.0% ~ 99.0% (3 Hz ~ 100 kHz)
    Pulse Width 500 ns ~ 990 ms

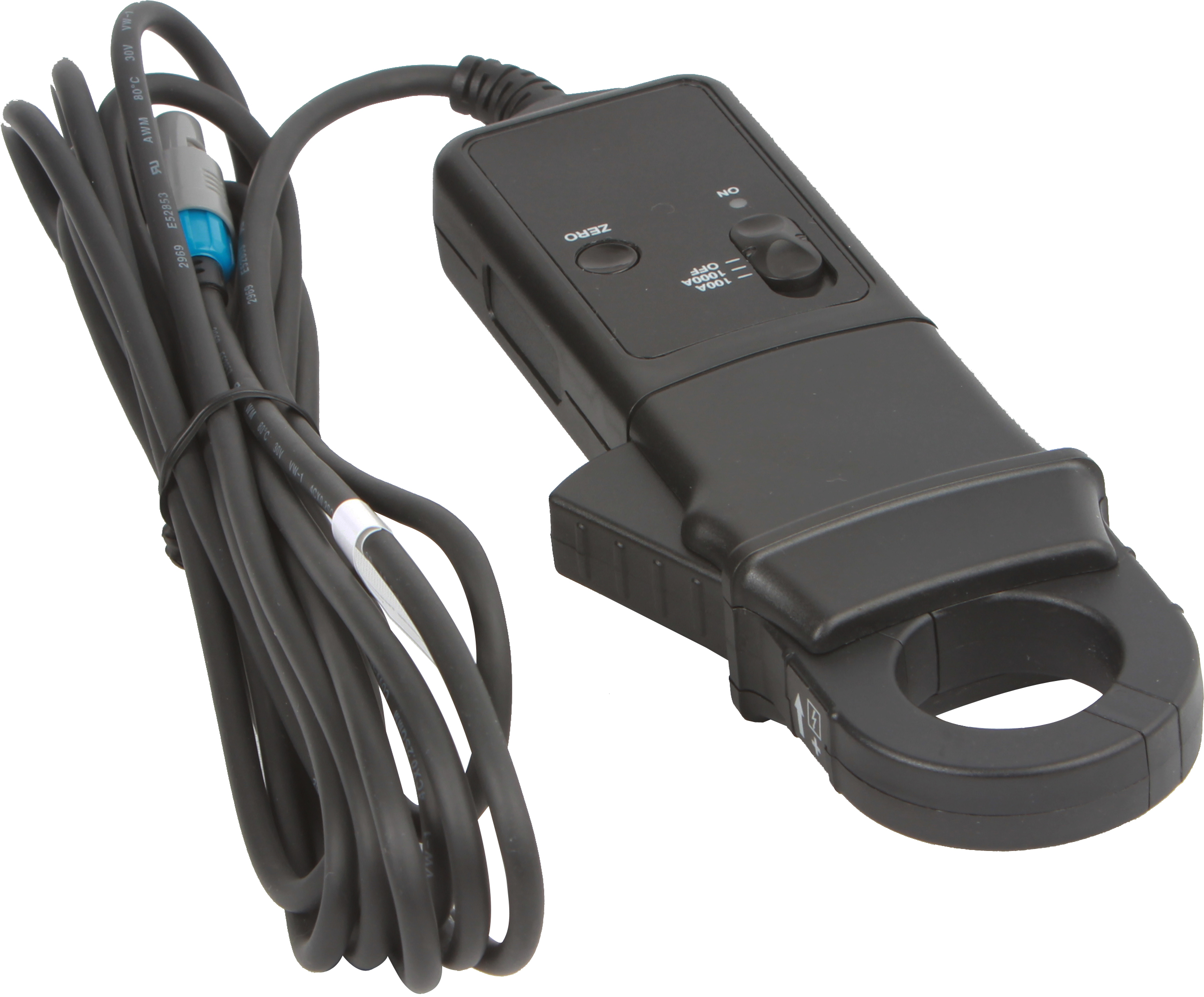

    Current/Vacuum Supported

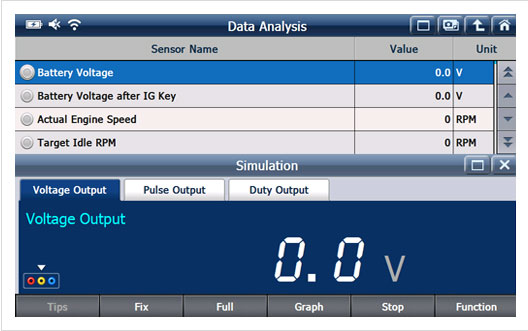

    ㆍSimulation

    Category Specifications
    Voltage Signal Output 0.0 ~ 5.0 V
    Frequency Signal Output 1Hz ~ 15Hz
    Actuator Control Frequency Range 1Hz ~ 2kHz
    Duly Range 1% ~ 99% (1% or 10% per Step)
    Pulse Width Depends on frequency or duty
    Voltage Signal Output 0.0 ~ 5.0 V

  • In-depth coverage for Asian cars and Trucks
    Vehicle communication part is designed fully compatible with G-scan, which enables the continued provision of unchallenged in-depth diagnostic capability on Asian passenger cars and commercial vehicles.

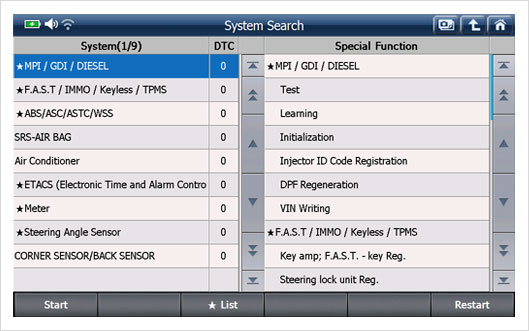

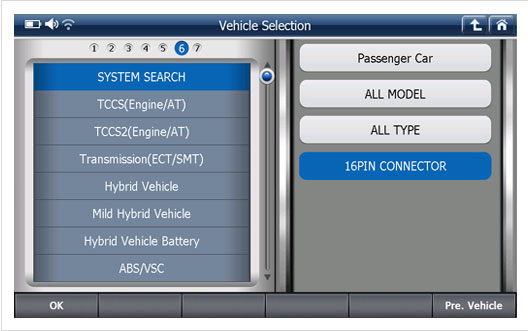

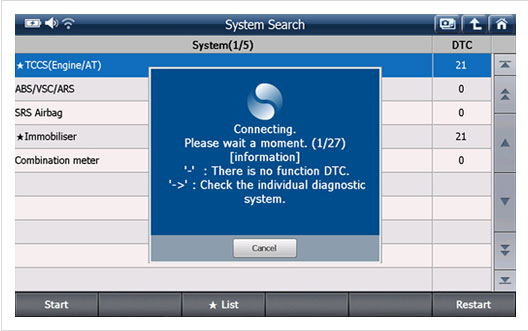

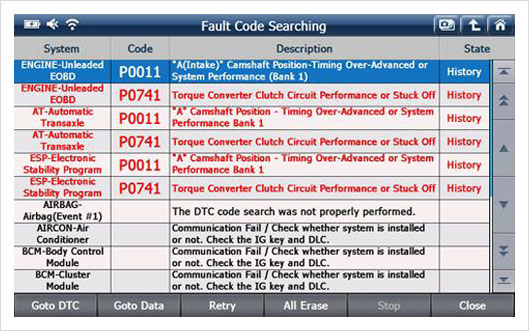

    System and DTC Auto Search
    “System Search’ option checks all the systems fitted in the car automatically and reports the number of fault codes found and availability of advanced diagnostic functions in each detected system

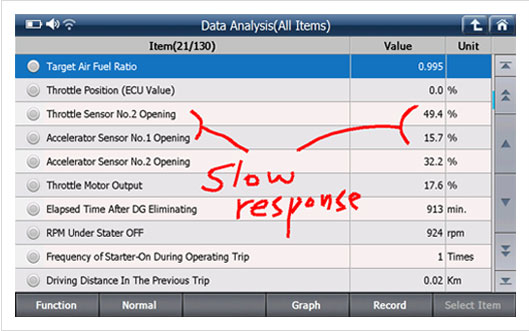

    Screen Capture and Memo
    Simply capture the screen any time and add quick hand written notes on the screen. It can be saved and reloaded for future reference.

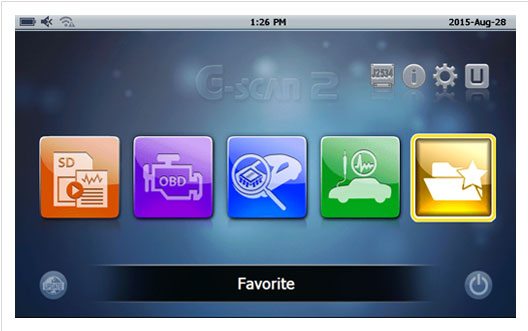

    Favorite and Recent
    Bookmark the frequently used functions in the “Favorite” menu, and call the function as needed without having to navigate all the menu layers each time. The “recent” menu serves as the shortcut to the functions that need to execute in short repetition.
    Full Text Description
    High resolution LCD screen and the 2-line DTC description display feature enables G-scan2 to show the long-text DTC descriptions in full preventing the use of the acronyms or cutting away the significant parts to fit in the limited text space.

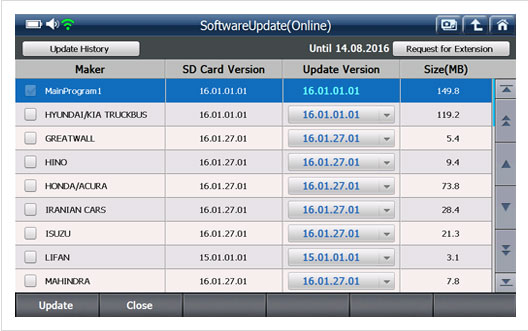

    Smart Update
    Smart Update system provides more flexibility for software management. The old and new versions for each marque can be downloaded from GIT’s server directly as per personal preferences.

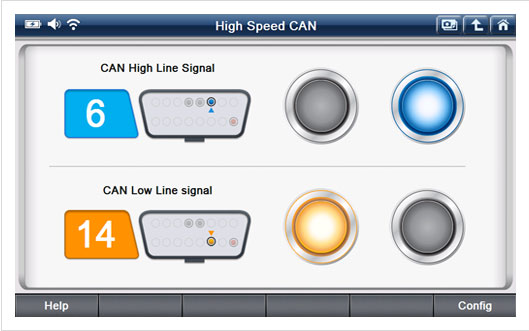

    CAN Line Inspection
    G-scan2 offers the function that detects the signal transmission of the CAN-Bus lines, and indicates the status of CAN-Bus signals by showing the illuminating lamp symbols on the screen to help instantly identify the hardware defect of CAN-Bus system.

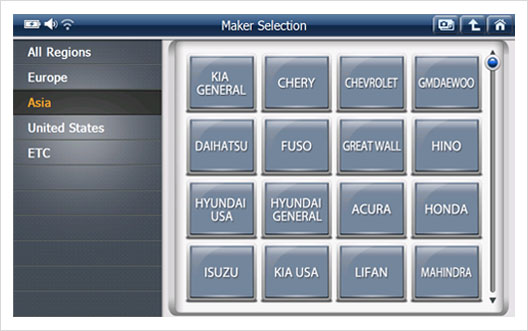

    Simple and easy menu structure
    If International is selected, a simple Diagnostic Connector Type selection follows and then the system selection can be made without having to follow further model name, model code, type or model year selections. It is so simple but it is not providing a simplified function. It provides complete function and diagnostic result of the same level as selecting all the details of the test car in Japan Domestic.

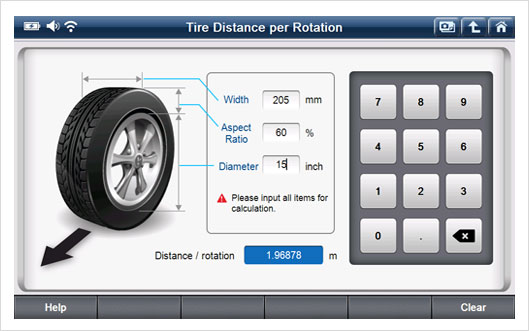

    Utility Functions
    G-scan2 offers a variety of utility functions like Communication Line Inspection, Unit Converter, Calculator and Special Functions Calculator (Ohm’s Law, Parallel Resistance, Frequency and Period, Tire Distance per rotation, Percentage) for user’s convenience.
    Dual Mode for Hyundai and Kia
    Hyundai and Kia software of G-scan2 supports dual mode where the 2 of the diagnostic functions (DTC Analysis, Data Analysis, Actuator Test and Simulator) are executed and displayed simultaneously.
    Flight Record
    Data Parameters can be recorded any time during the test as the Flight Record which can be replayed in numeric or graphical form.

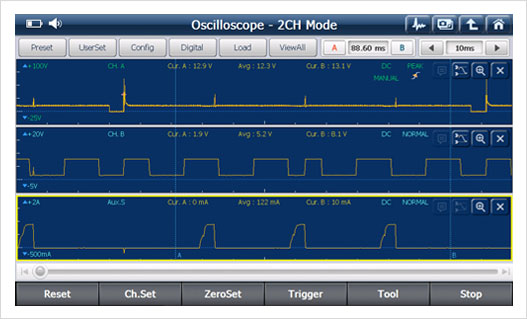

  • Oscilloscope Function
    With optional VMI2 Pack, G-scan2 Measures the voltage or amperage fluctuations of the vehicle’s sensor or actuator circuits in rapid repetition and visualizes the signals in the graphic waveforms. Measurement of cylinder compression is also possible by the use of optional pressure sensor.


    4 Channel Mode with aux. input

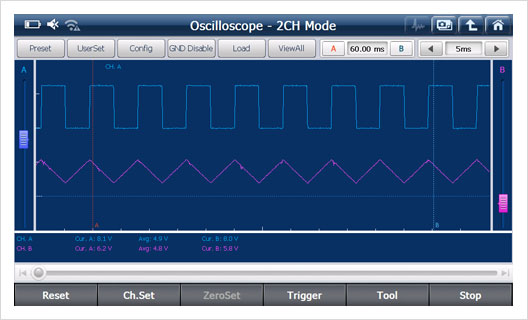

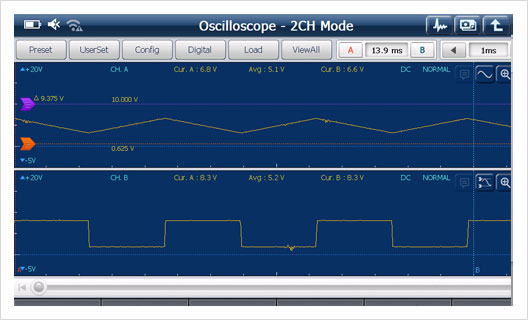

    2 Channel Mode with aux. input



    2/4 Channel Mode Single Pattern

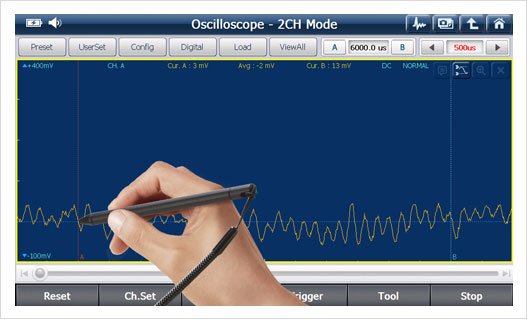

    Trigger setting by screen touch

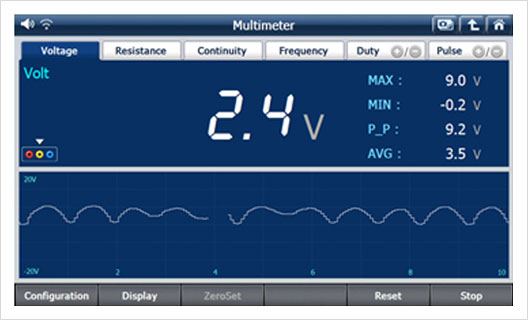

    Digital Multi-meter

    G-scan2 provides digital meter function through the VMI that performs the measurement of voltage, resistance, frequency, duty cycle and pulse width as well as the continuity test.



    Voltage Meter


    Resistance Meter

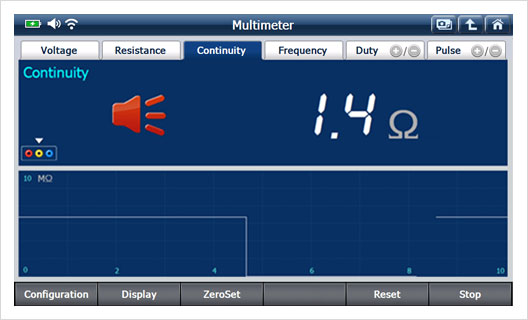

    Continuity Test

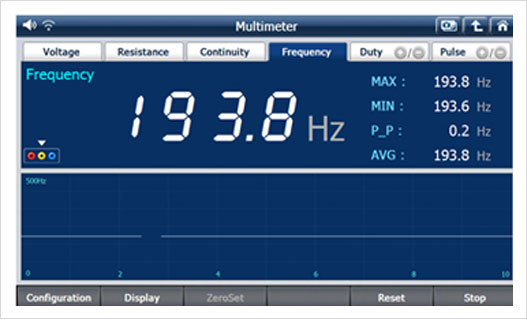

    Frequency Meter

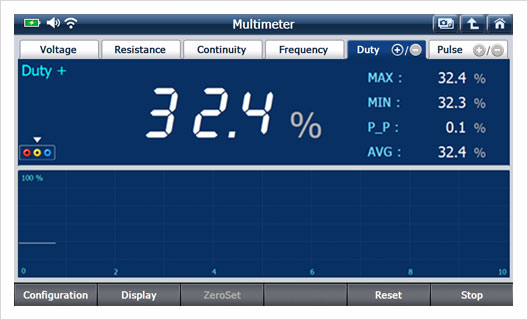

    Duty cycle


    Pulse Meter

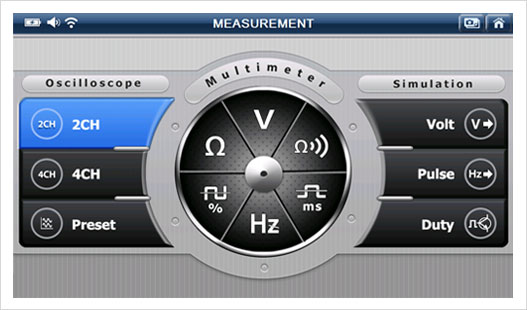

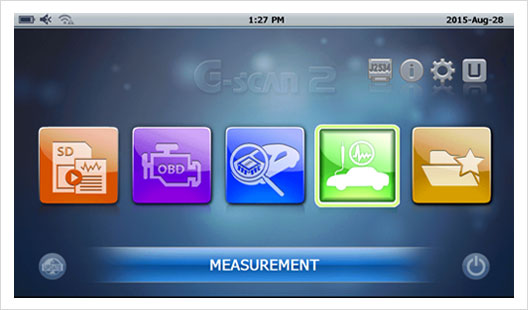

    Measurement Function (VMI2 only)

    CAN Line Inspection Guide


    Actual waveform of high speed CAN signal

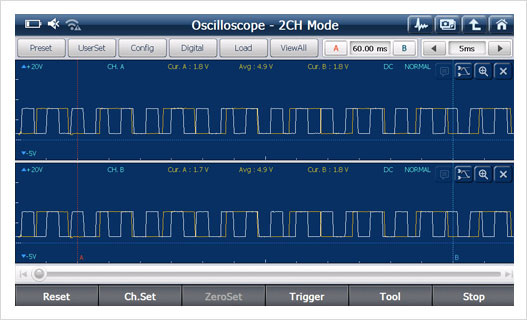

    Combine or Separate CH A and CH B

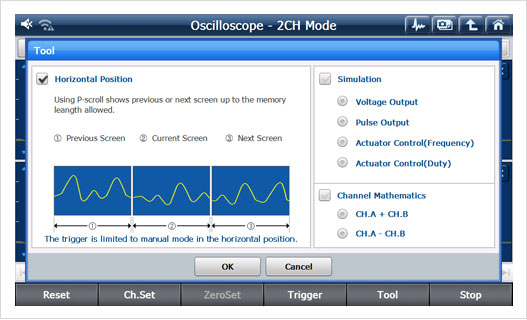

    Horizontally movable screen with P-scroll


    Measurement Guide

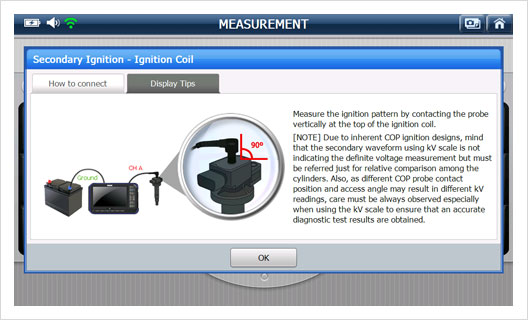

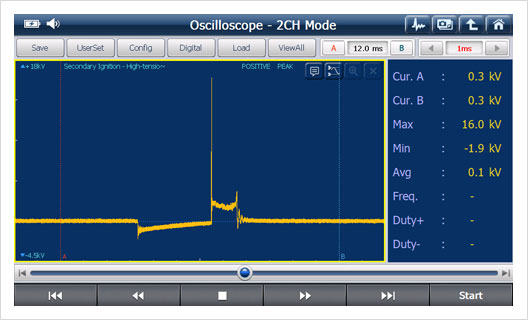

    Coil-On Plug Ignition System


    Saved/Reference Waveform - Comparison with loaded waveform



    Ground Set


    Horizontal Position


    Displays two cursors on horizontal axis. Freely movable cursors help user to analyze high and low voltage

  • Basic Supplies

    Parts included in the Trade-in Kit



    G-scan 2 Base Unit

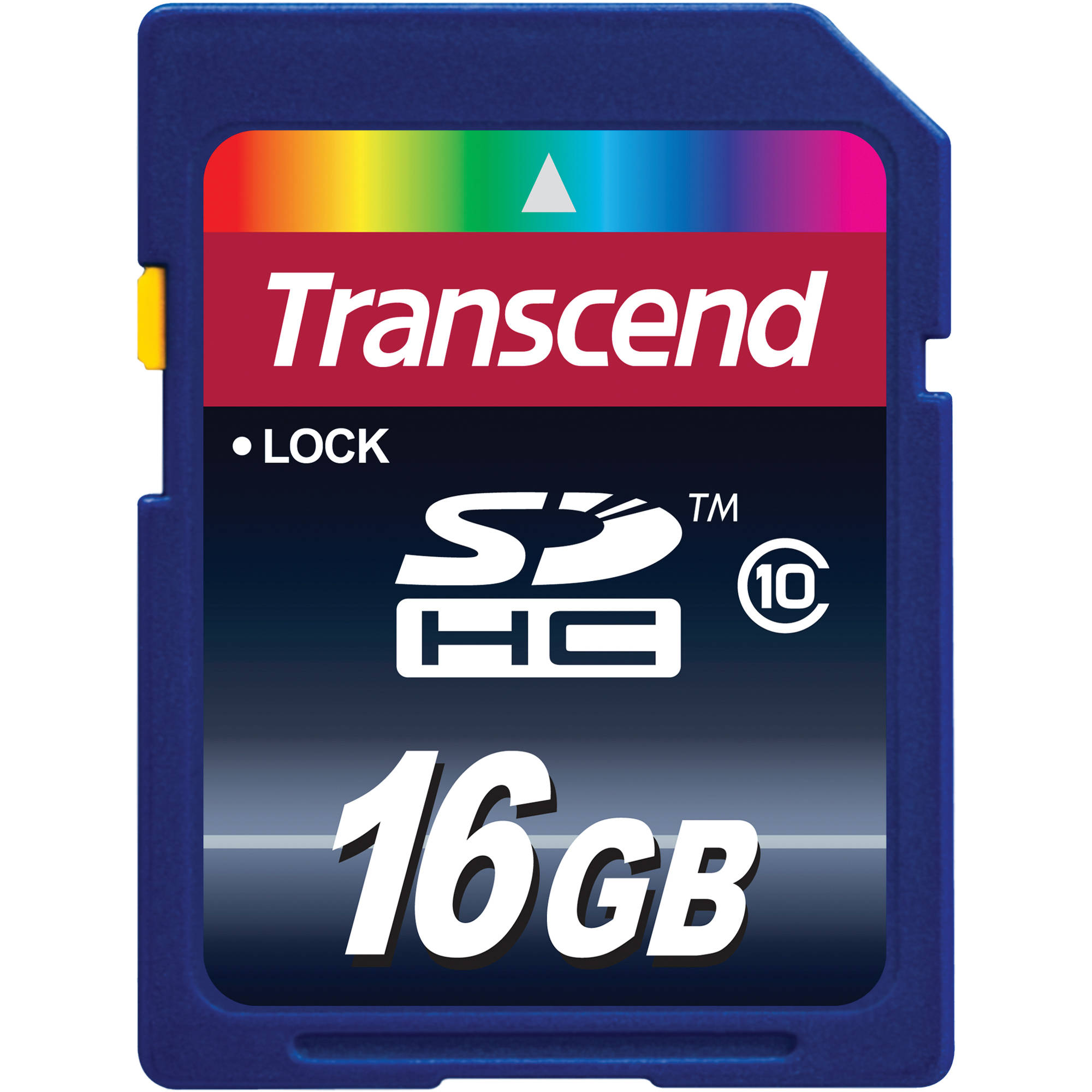

    SD Card 16GB

    Part Name: G-scan2 Base Unit

    G-scan2 base unit with battery pack and SD Card
    (VMI module replaces battery pack for VMI Pack options)



    Part Number: A2MDT2SD16G

    Provided included in the base unit.
    A memory card that contains software and data for diagnostic functions.

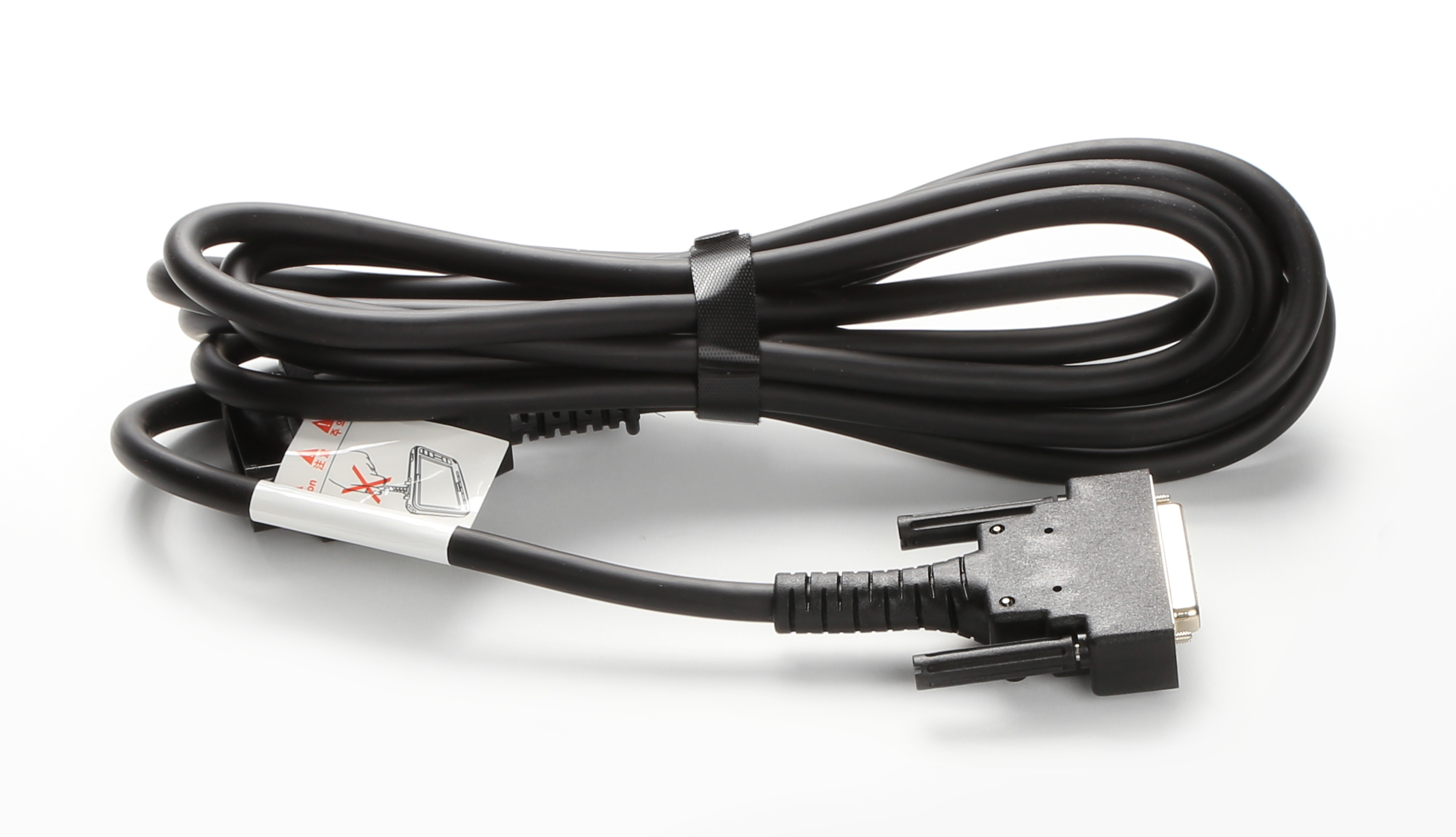

    DLC Main Cable

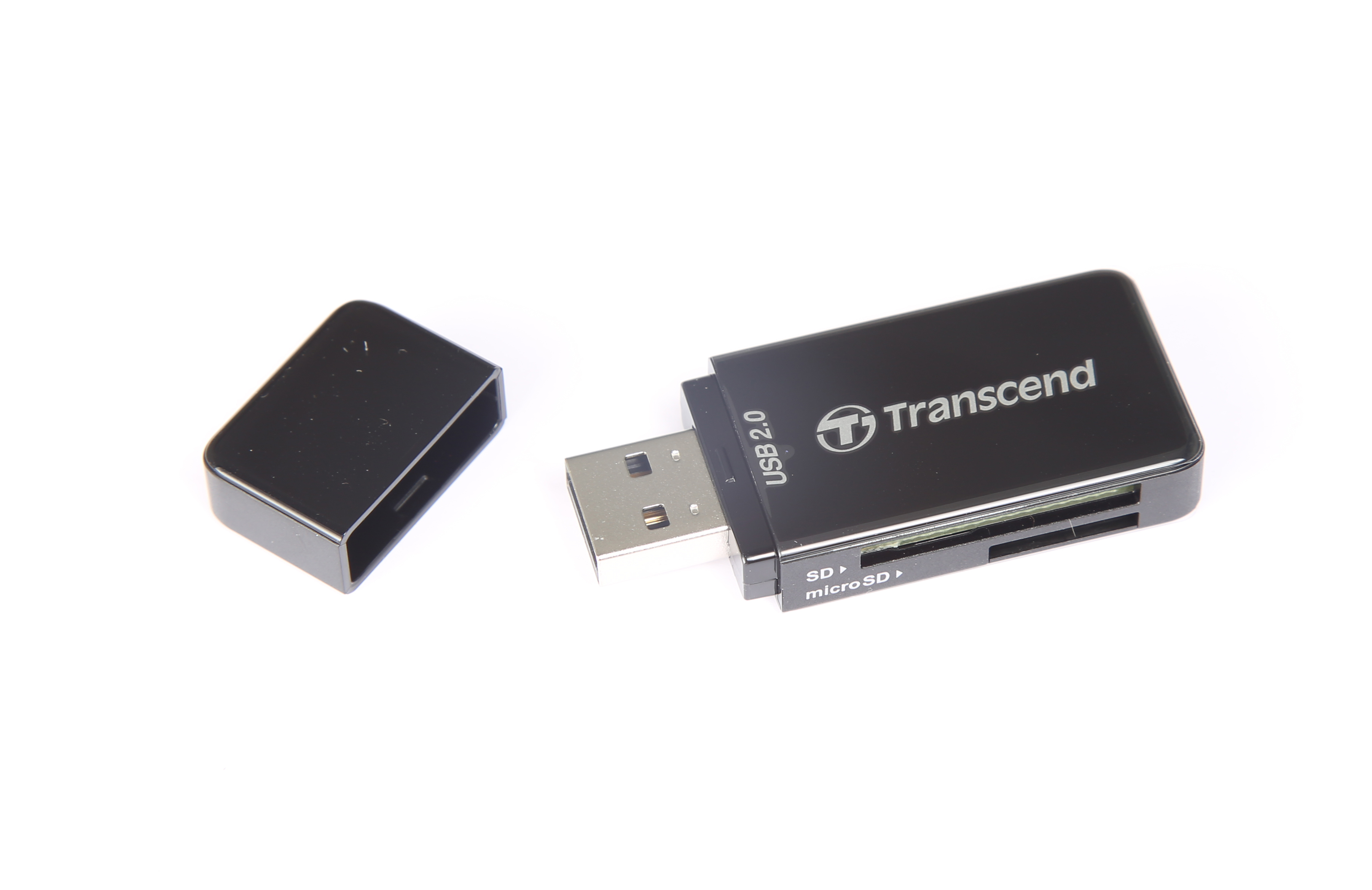

    SD Card Reader

    Part Number: G1FZFCA001

    The main cabled used for connecting the G-scan2 base unit and the car's OBD2 connector.



    Part Number: A2MDK1CCRP5

    A USB card reader used for connecting the SD Card to the PC.
    (Specs can be changed without notice)
    Self Test Adapter   Quick Manual

    Part Number: G1CDDPA008

    A cable used for self test of G-scan2 base unit and the cable connection.
    Do not use this cable for vehicle diagnostic functions



    Part Number: G1FZTZM001

    A single piece laminated paper manual for quick guidance for G-scan2 usage.

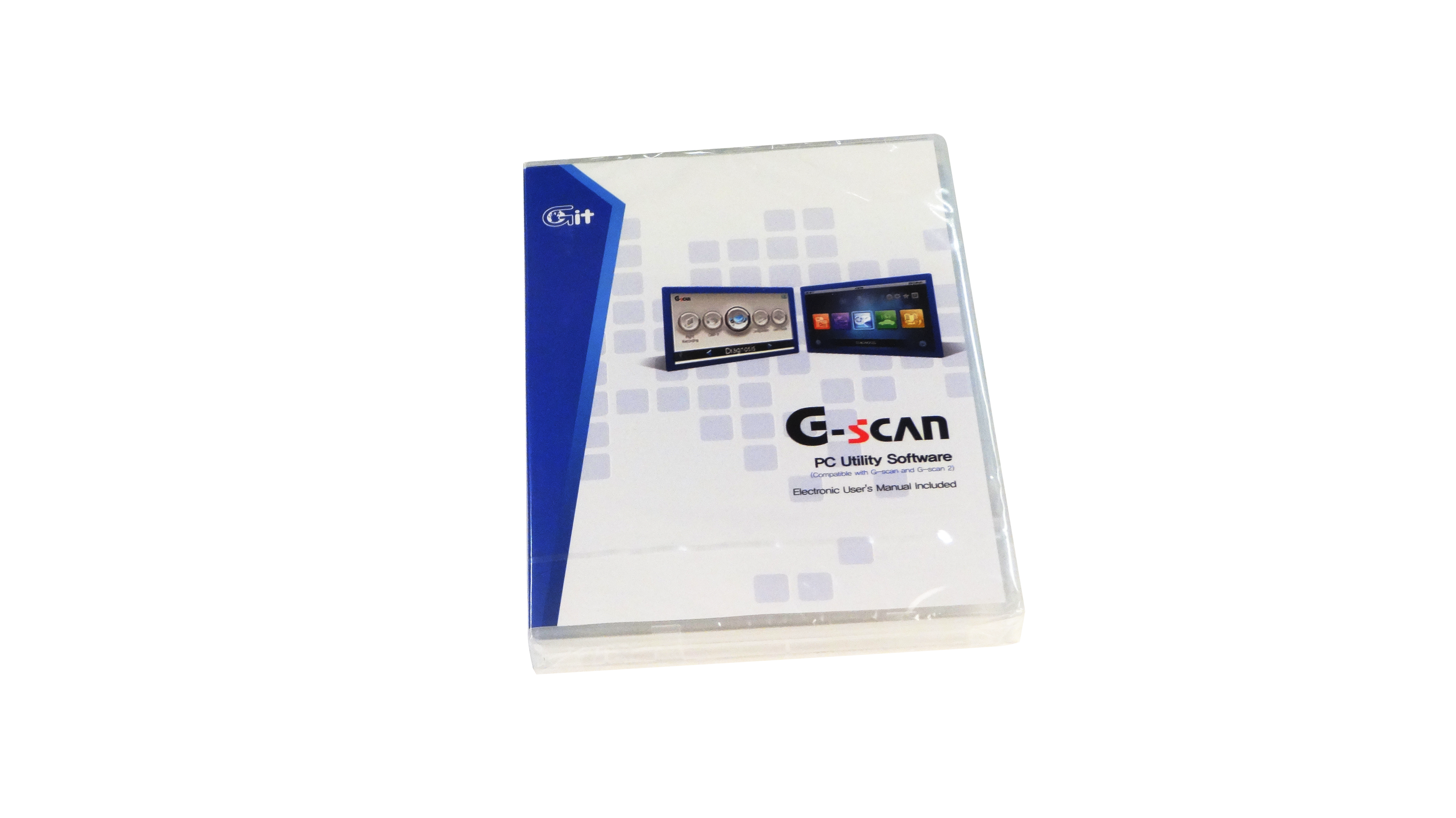

    PC Utility CD (S/W)

    Part Number: G1PZGDP001
    A CD that contains the G-scan2 PC utility installation program and soft copy of user's guide.













    Optional Accessories

    Parts included in the Standard, Asian and Full Kit

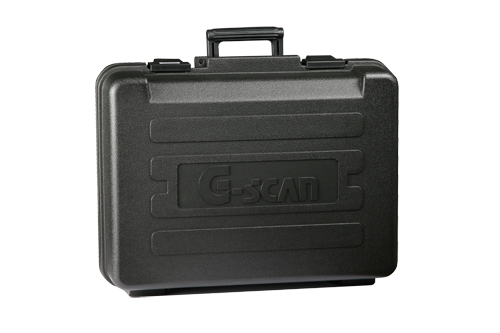

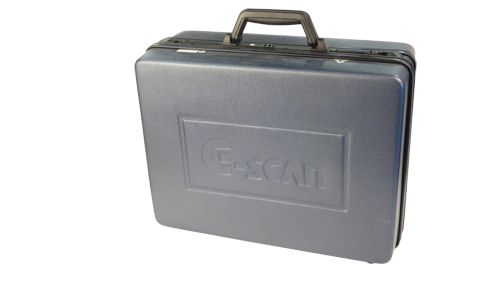

    Carrying Hard Case (Small)   Carrying Hard Case (Big)

    G1FZDHA001

    A portable and heavy duty hard case that contains G-scan2 base unit and parts.

    A portable and heavy duty hard case that contains G-scan2 base unit and parts.
    Battery Cable   AC/DC Adapter

    Part Number: G2SDDCA003

    A power supply cable used together with the Cigarette Lighter Cable when supplying power from the car's battery.


    Part Number: G1CDDPA013

    AC to DC converter used for supply of AC power to the G-scan2 base unit.

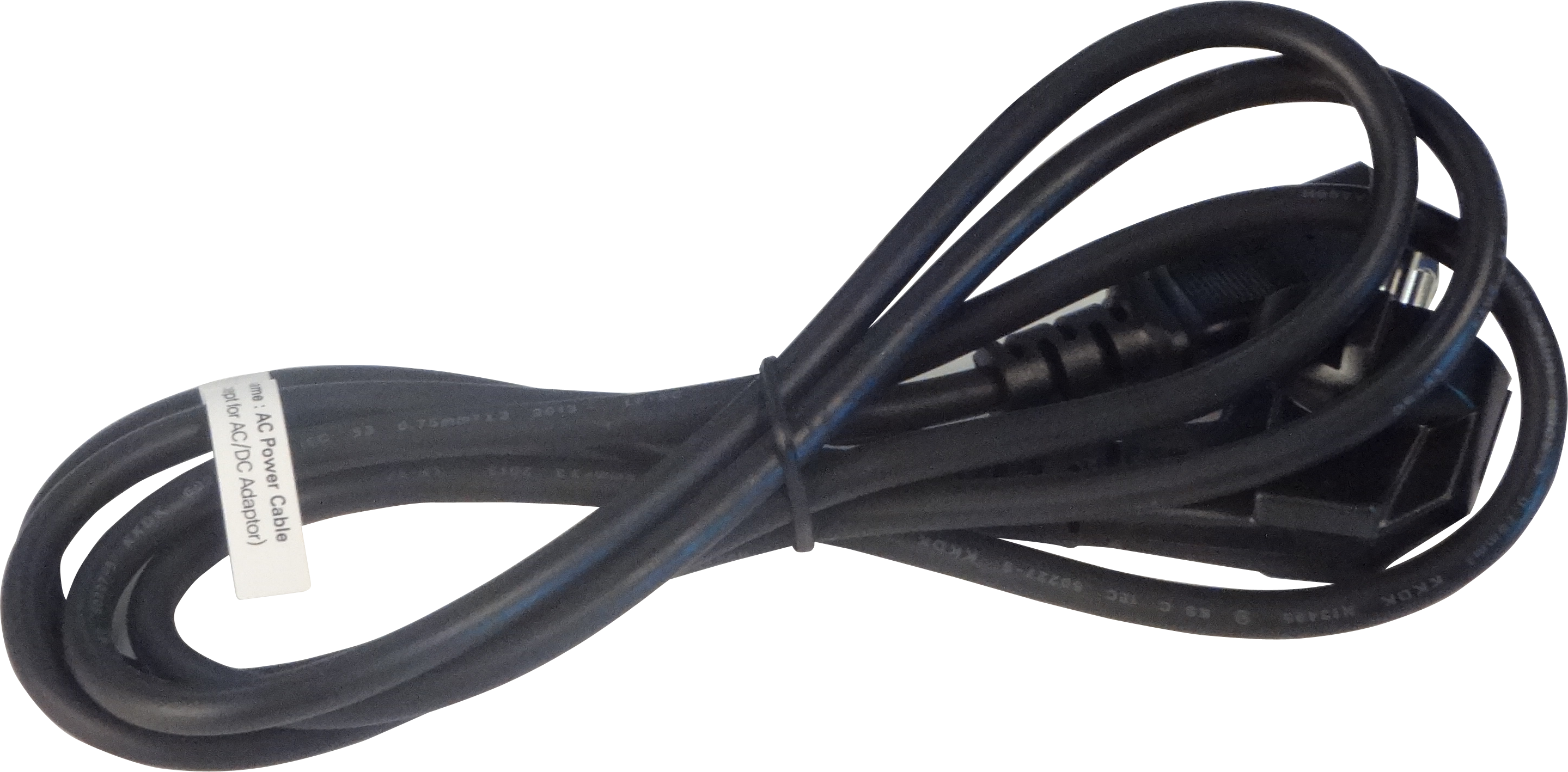

    AC Power Cord   Cigarette Lighter

    Part Number: G1CDECA001 (Europe, Korea) / G0PDDCN001(Australia)
    G0PDDCN002(UK, Malaysia) / G1PDDCA002(North America)

    AC power cord used with the AC/DC adapter for supply of AC power to G-scan2 base unit.

    Different type AC plugs may apply for different countries.

     i.e. Korea, USA. Australia and UK. Spec: IEC 60320 C13


    Part Number: G1PDDCA002

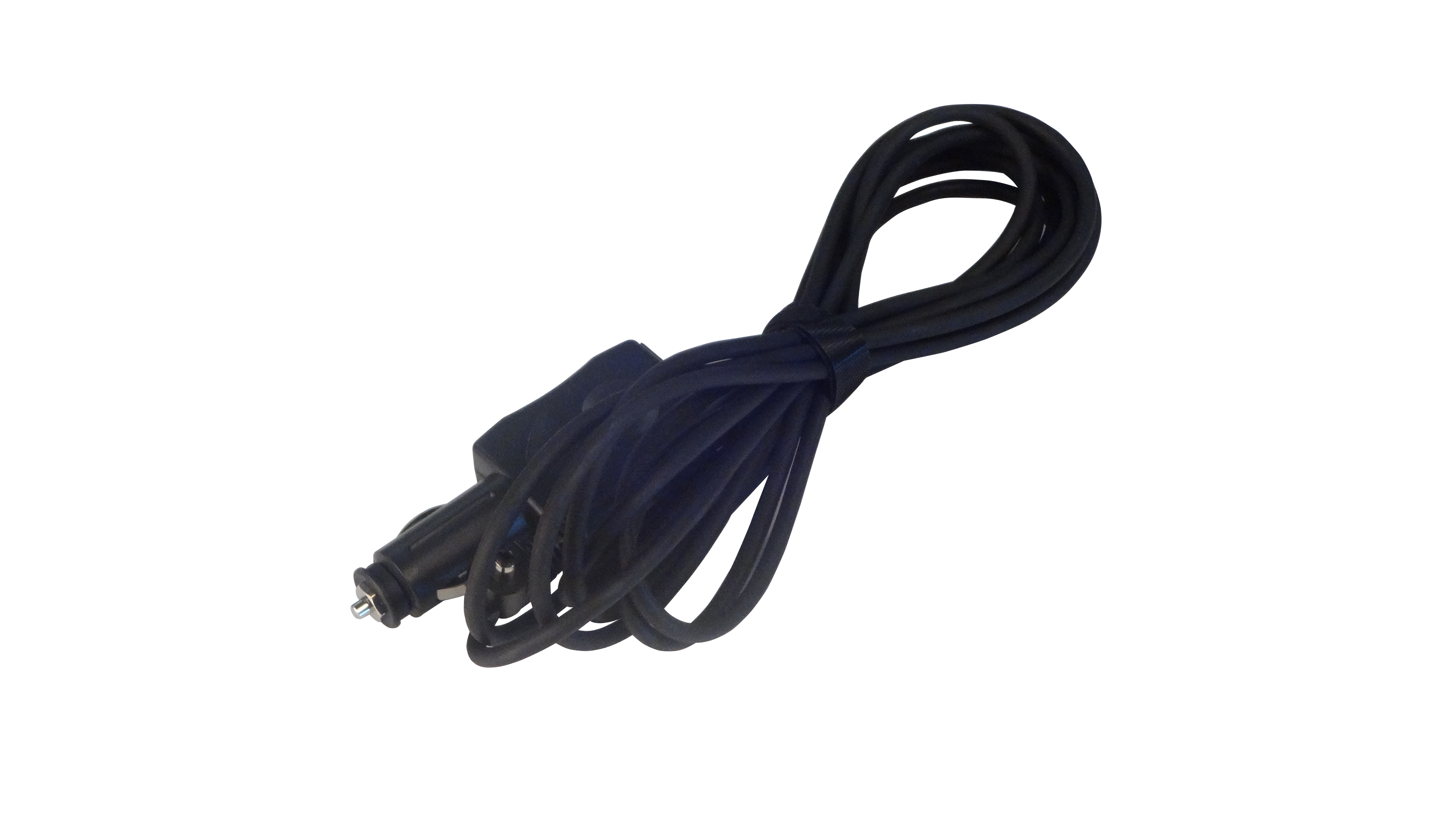

    A power supply cable used when supplying power from the car's cigarette lighter socket.







    Optional Asian Car OBD Adapters

    Parts included in the Asian and Full Kit

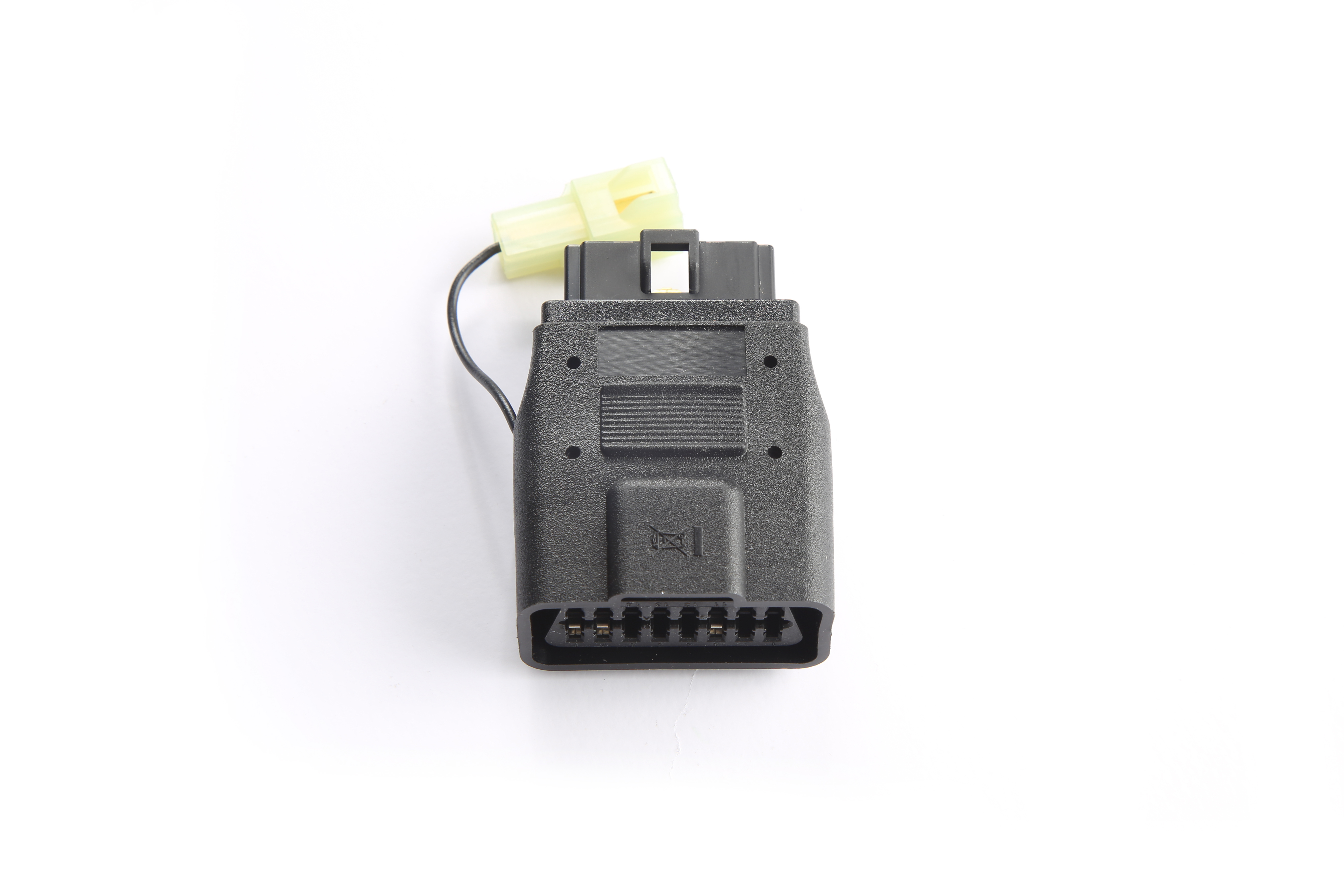

    TOYOTA 17+1P Square     TOYOTA 17P Round

    G1PZDPA001

    Used for communication with old Toyota and Lexus cars with 17+1 pin

    "Square (rectangular)" type diagnostic connector in the engine compartment.

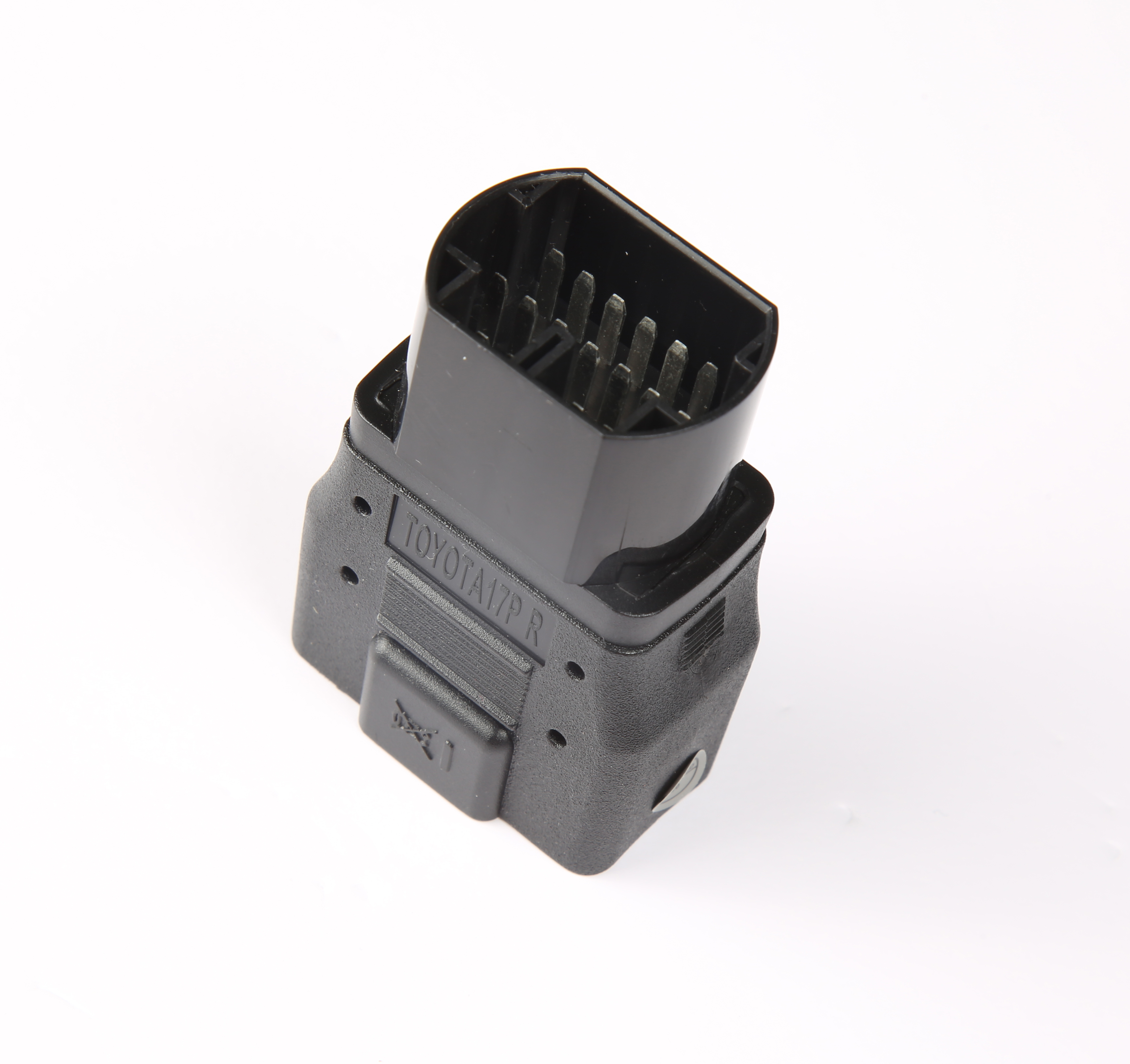

    G1PZFPA002

    Used for communication with old Toyota and Lexus cars with the 17-pin "Round (Semi-circular)" type diagnostic connector.
    Same appearance as the Mazda 17P adapter, make sure to check the name engraved on the surface.

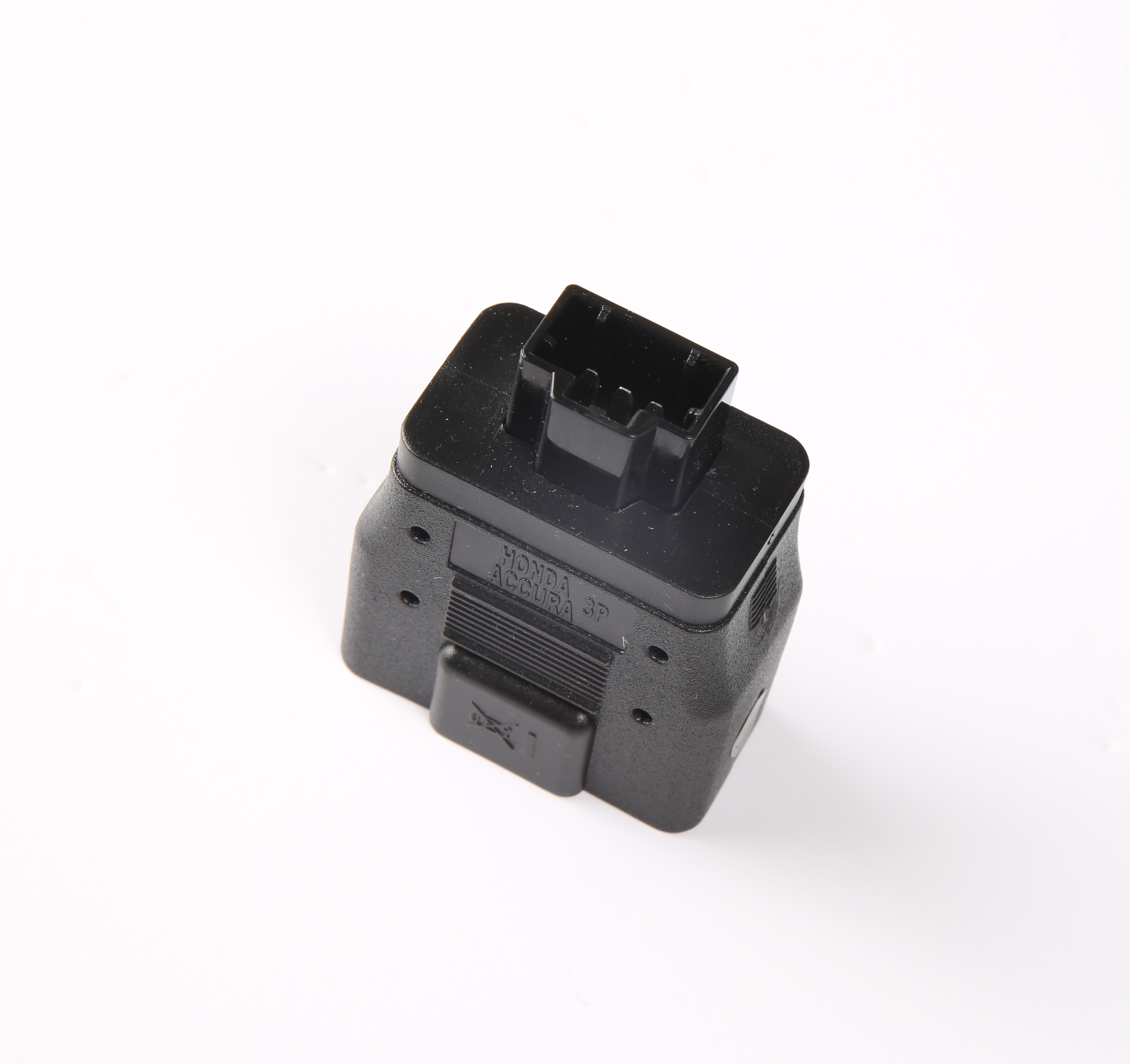

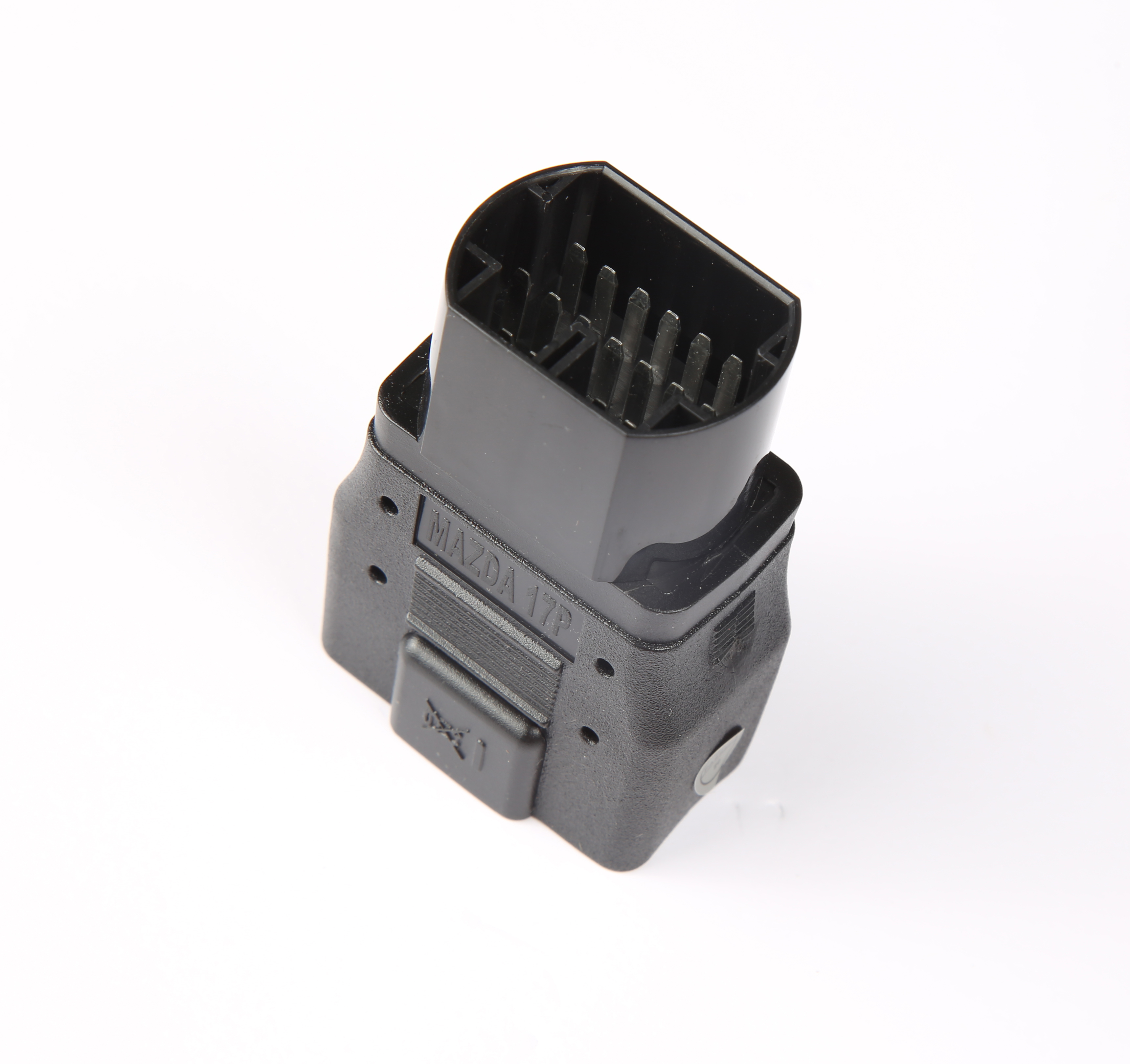

    HONDA/ACURA 3P     MAZDA 17P

    G1PZFPA003

    Used for communication with old Honda and Acura cars with the 3-pin or 5-pin diagnostic connector.



    G1PZFPA004

    Used for communication with old Mazda models.
    Same appearance as the Toyota 17P R adapter, make sure to check the name engraved on the surface.

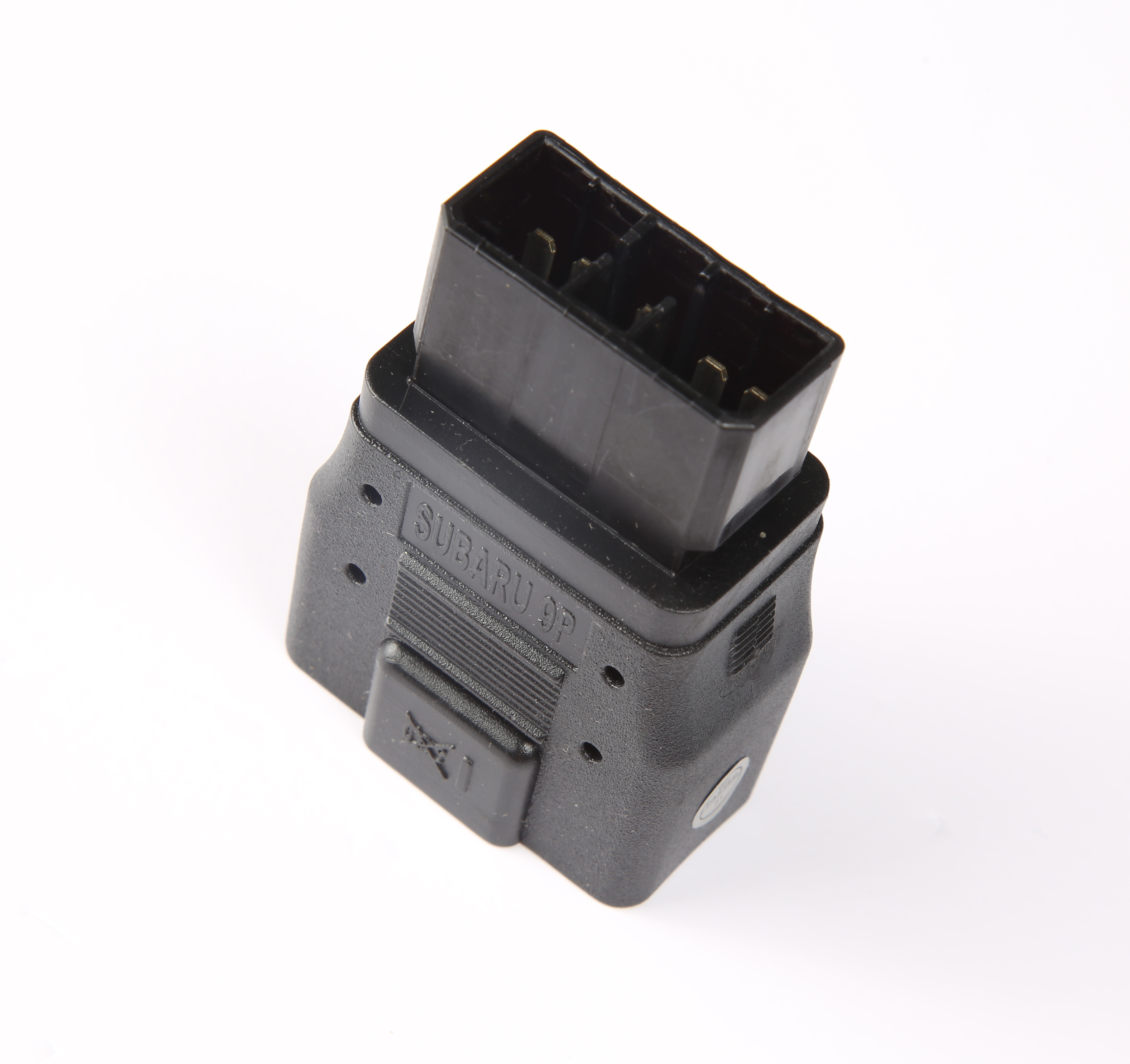

    SUBARU 9P     MITSUBISHI 12P+16P

    G1PZFPA005

    Used for communication with old Subaru cars with the 9-pin diagnostic connector.
    (Can be excluded from the Asian kit due to regional preferences)



    G1PZDPA002

    Used for communication with old Mitsubishi or Hyundai cars with the 12-pin single or 12+16pin dual diagnostic connector.

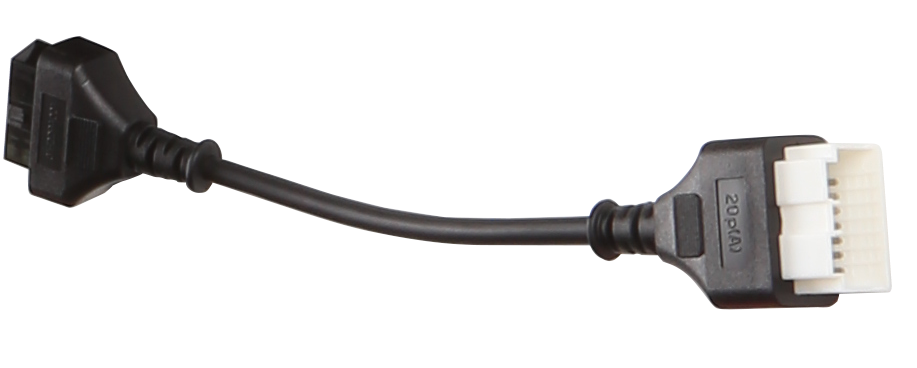

    Kia 20P-A type Connector     Kia 20P-B type Connector

    G1FDDPA001

    Used for communication with old Kia cars with 20 pin diagnostic connector in the engine compartment.
    Generally used for '99 ~ '02 MY cars.



    G1FDDPA002

    Used for communication with old Kia cars with 20 pin diagnostic connector in the engine compartment.
    Generally used for '03 ~ '05 MY cars.

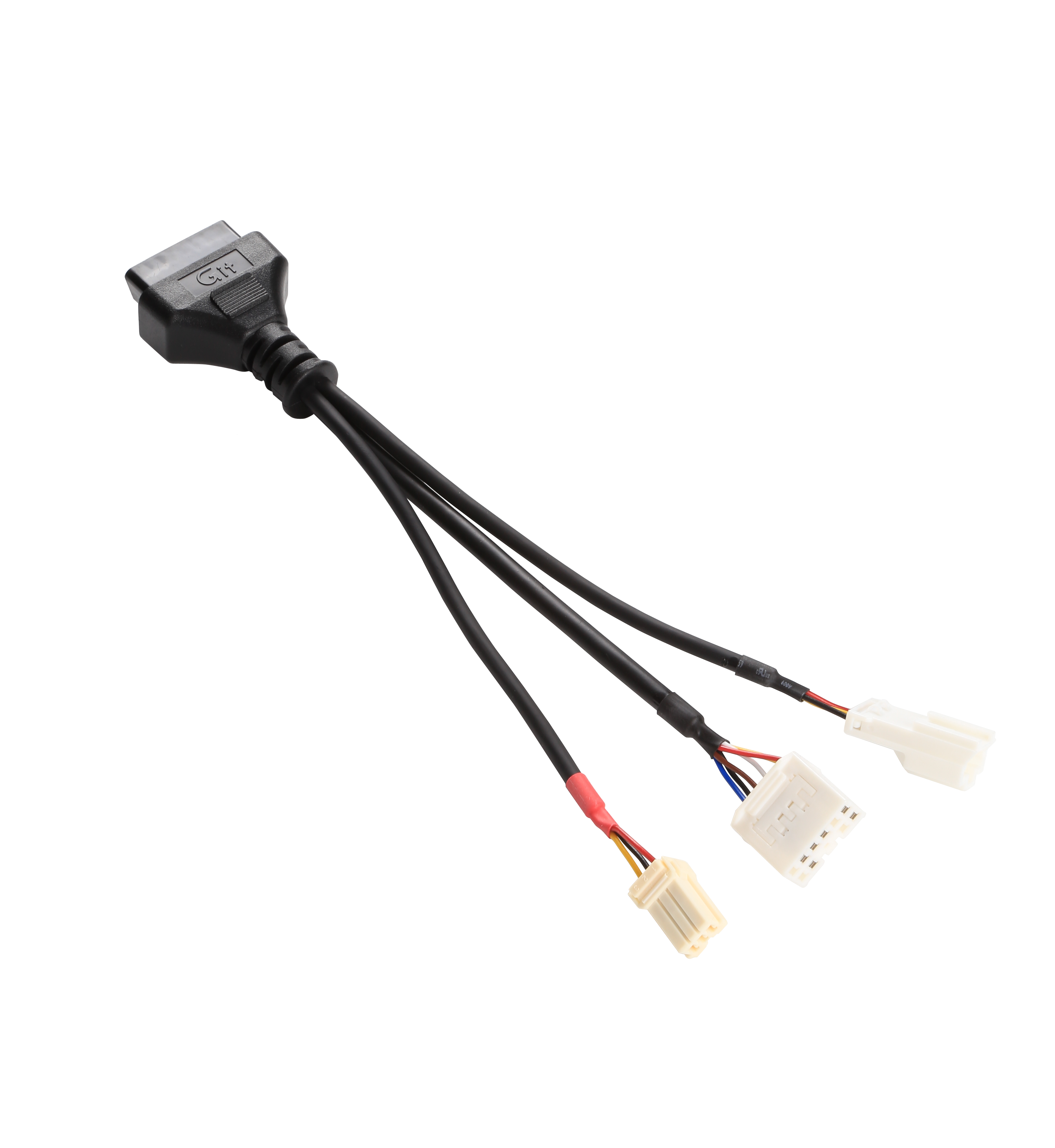

    Hyundai & Kia Keyless Connector     NISSAN 14P

    G1CDDPA007

    Used for some old Hyundai and Kia models that require special connector for keyless entry remote control coding



    G1PZFPA007

    Used for communication with old Nissan or Infiniti cars with the 14-pin diagnostic connector.


    Ssangyong 14P     Ssangyong 20P

    G2WDDCN006

    Used for communication with old Ssangyong cars with 14 pin circular diagnostic connector in the engine compartment (Can be excluded from the Asian kit due to regional preferences)



    G2WDDCN007

    Used for communication with old Ssangyong cars with 20 pin square diagnostic connector in the engine compartment

    (Can be excluded from the Asian kit due to regional preferences)
    Daewoo 12P

    G2WDDCN008

    Used for communication with old Daewoo cars with 12 pin diagnostic connector

    (Can be excluded from the Asian kit due to regional preferences)









    Optional European Car OBD Adapters

    Parts available as optional supply

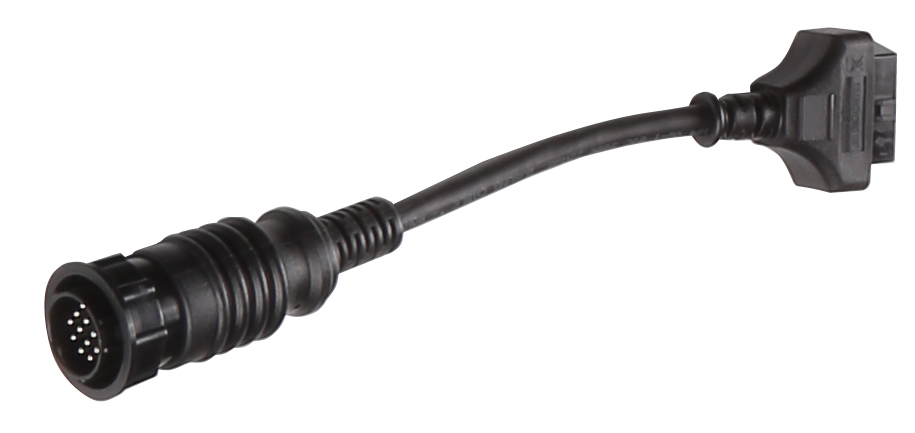

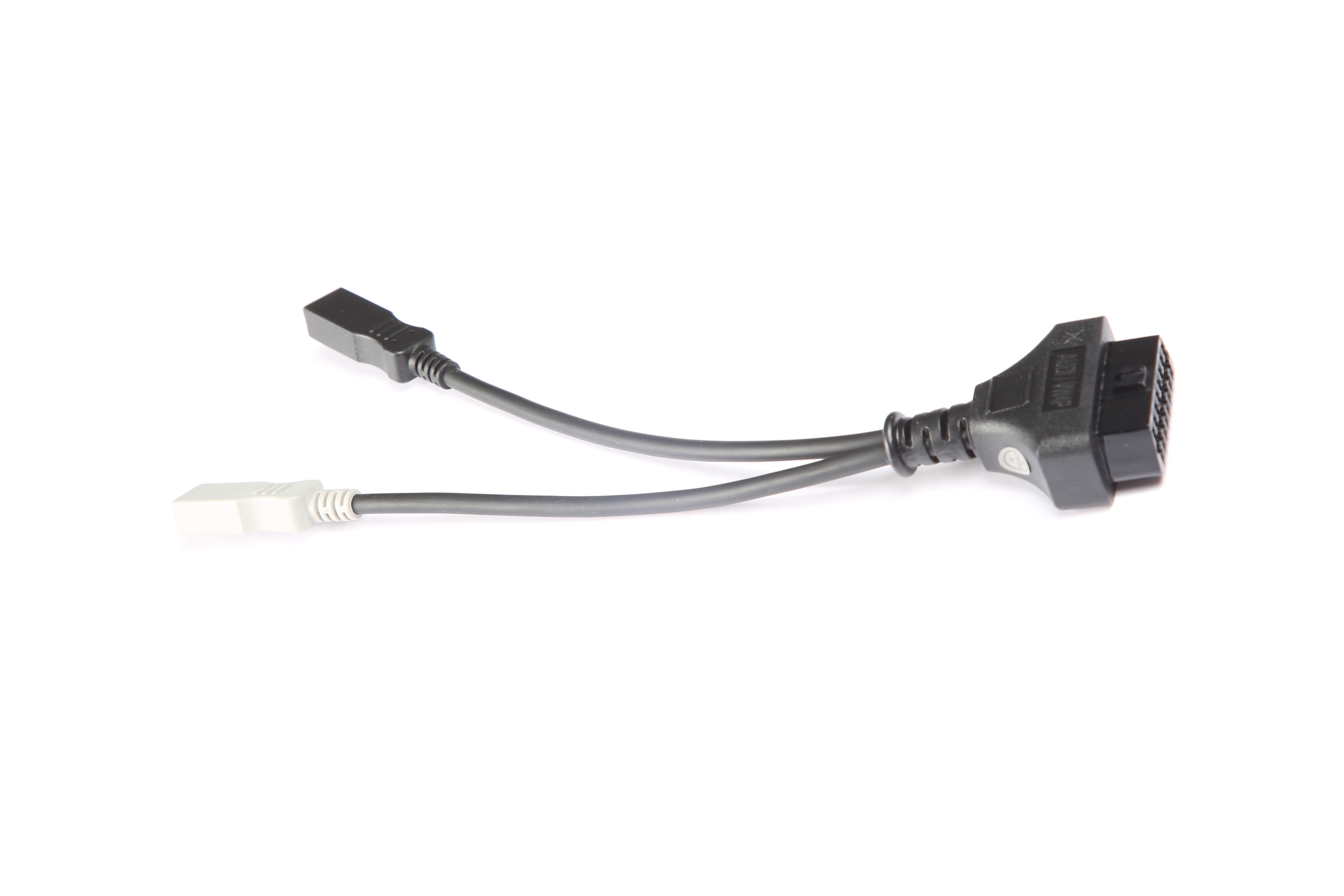

    BMW 20P   AUDI / VW 4P
    1PZEPA001

    Used for communication with old BMW cars with the 20-pin circular diagnostic connector.

    G1PZEPA002

    Used for communication with old Volkswagen, Audi, Seat or Skoda cars with the 2 X 2 pin diagnostic connector.

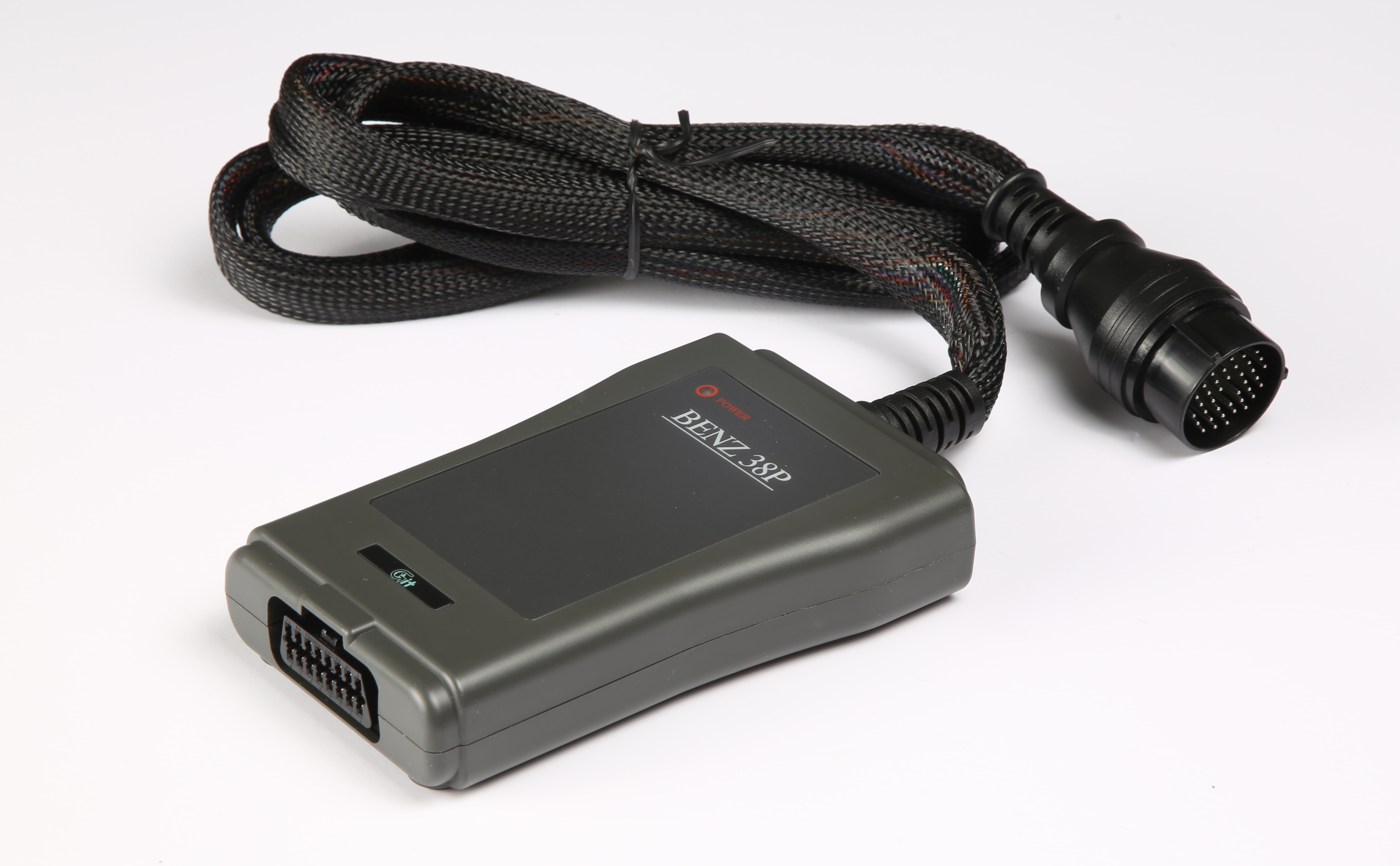

    BENZ 38P
    G1PZEPA012

    Used for communication with old Mercedes Benz cars with the 38-pin circular diagnostic connector in the engine compartment.
    (Can be excluded from the full kit and replaced with the other optional adapters due to regional preferences)








    Optional Diagnostic Adapters for Commercial Vehicle

    Parts available as optional supply

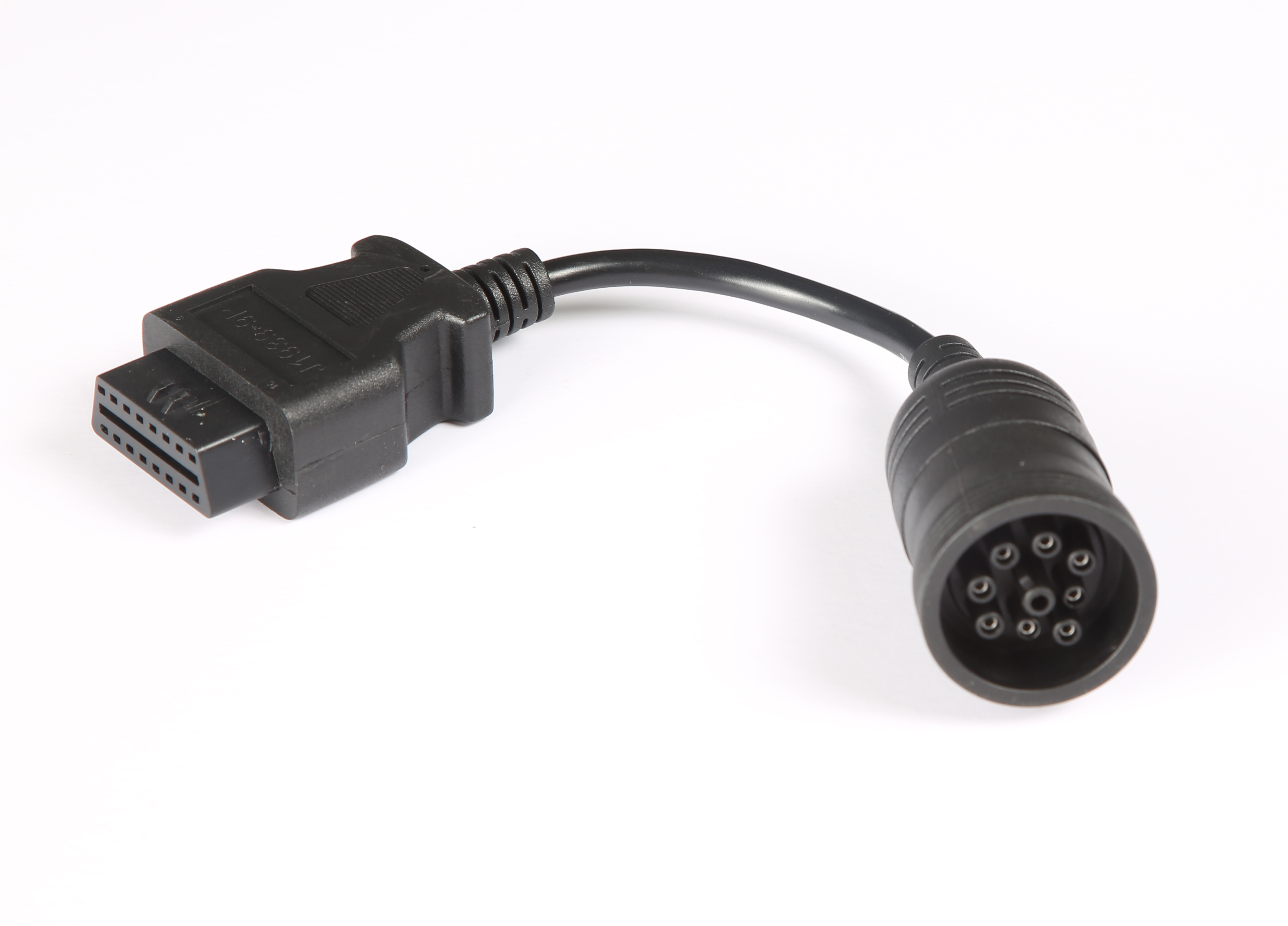

    J1939 9P   Isuzu 20-10-3P
    G1PZDPA005

    Used for generic communication with SAE J1939 compatible commercial vehicles

    G1PZDPA006

    Used for communication with old type Isuzu commercial vehicles

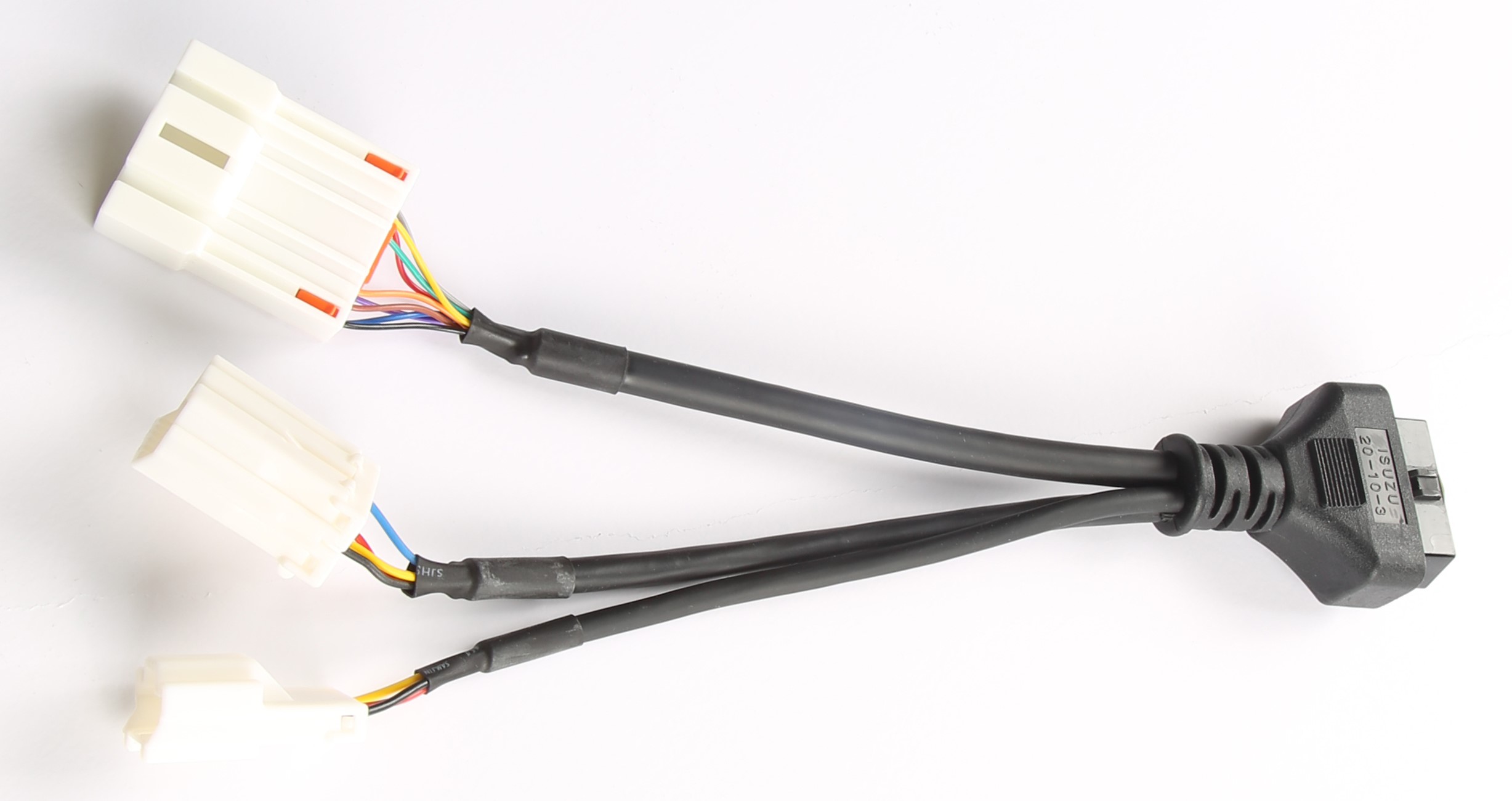

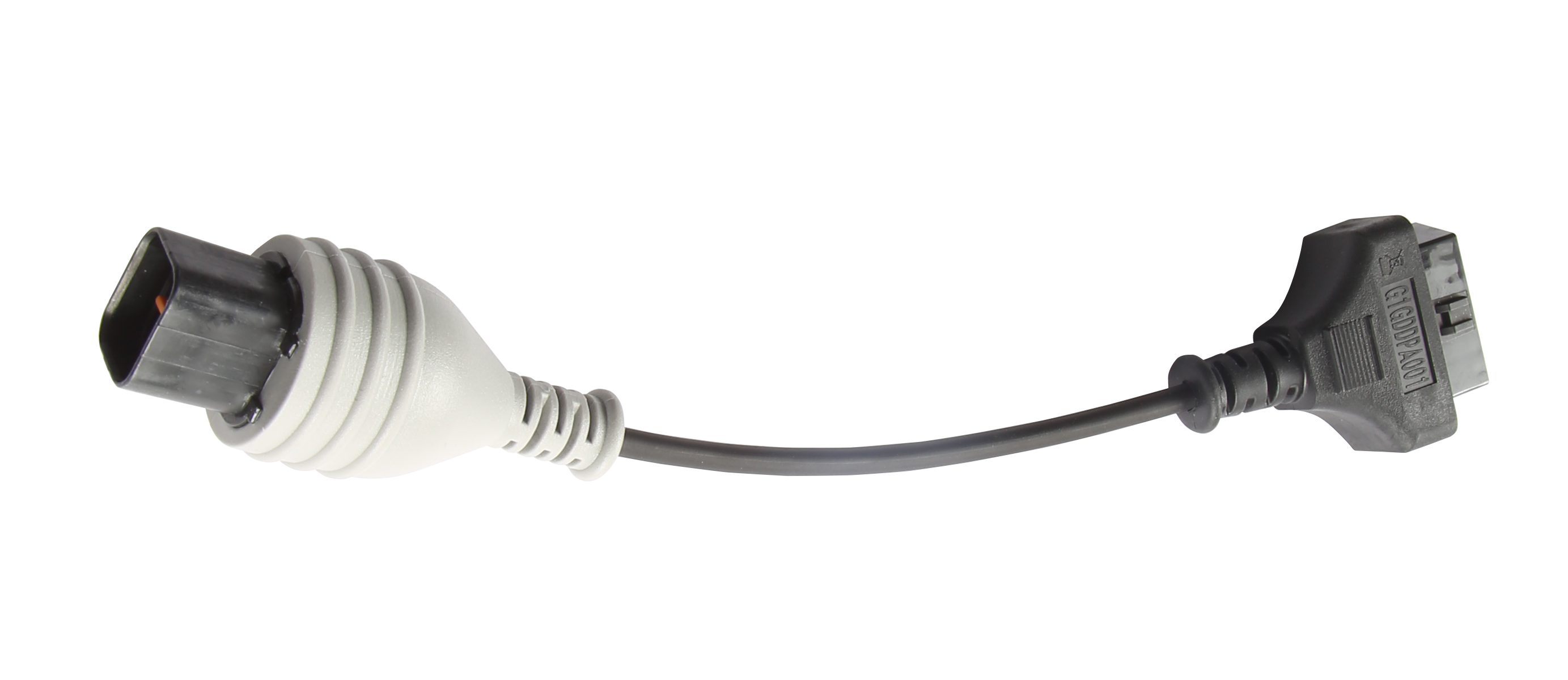

    Universal AdapterHyundai Commercial 16P   Hyundai Commercial 16P
    G2WDDCN010

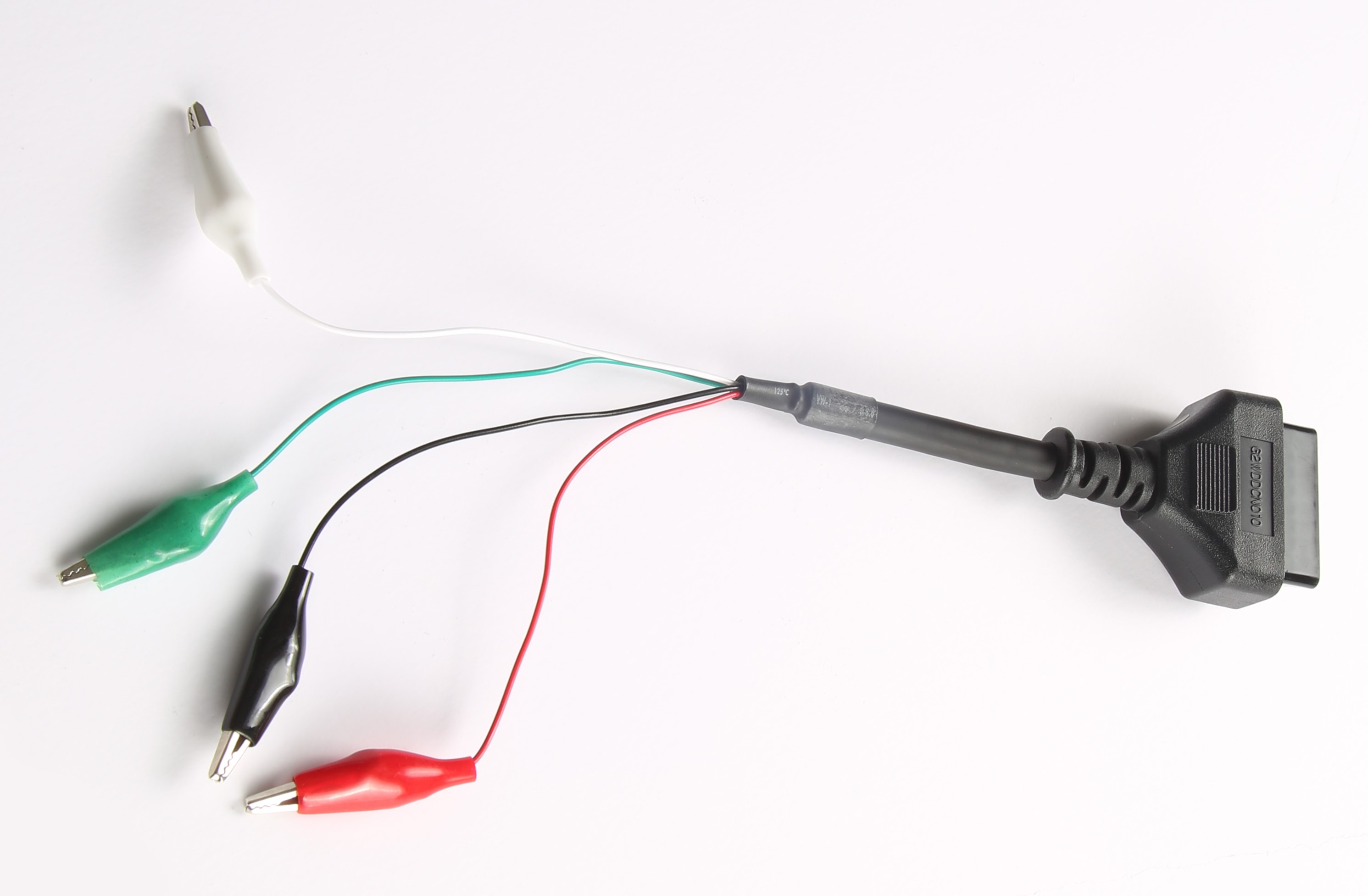

    Used for communication with the vehicles that are fitted with non-standard OBD adapters that
    G-scan's standard kit adapters are not compatible

    G2SDDCA029

    Used for most Hyundai and Kia commercial vehicles. Similar to standard OBD2 connector, but the internal wirings are different.
    Colored light grey for recognition
    Hyundai Commercial 4P CNG   Kia 6P
    G1GDDPA001

    4-pin circular connector used specifically for Hyundai CNG (Compressed Natural Gas) buses

    G1CDDPA005

    Used for communication with old Kia cars with 6 pin diagnostic connector in the engine compartment.
    (Can be excluded from the Asian kit due to regional preferences)







    Basic Components of VMI/VMI2

    (Optional: Replace Battery Pack) Parts supplied with the G-scan2 for measurement functions

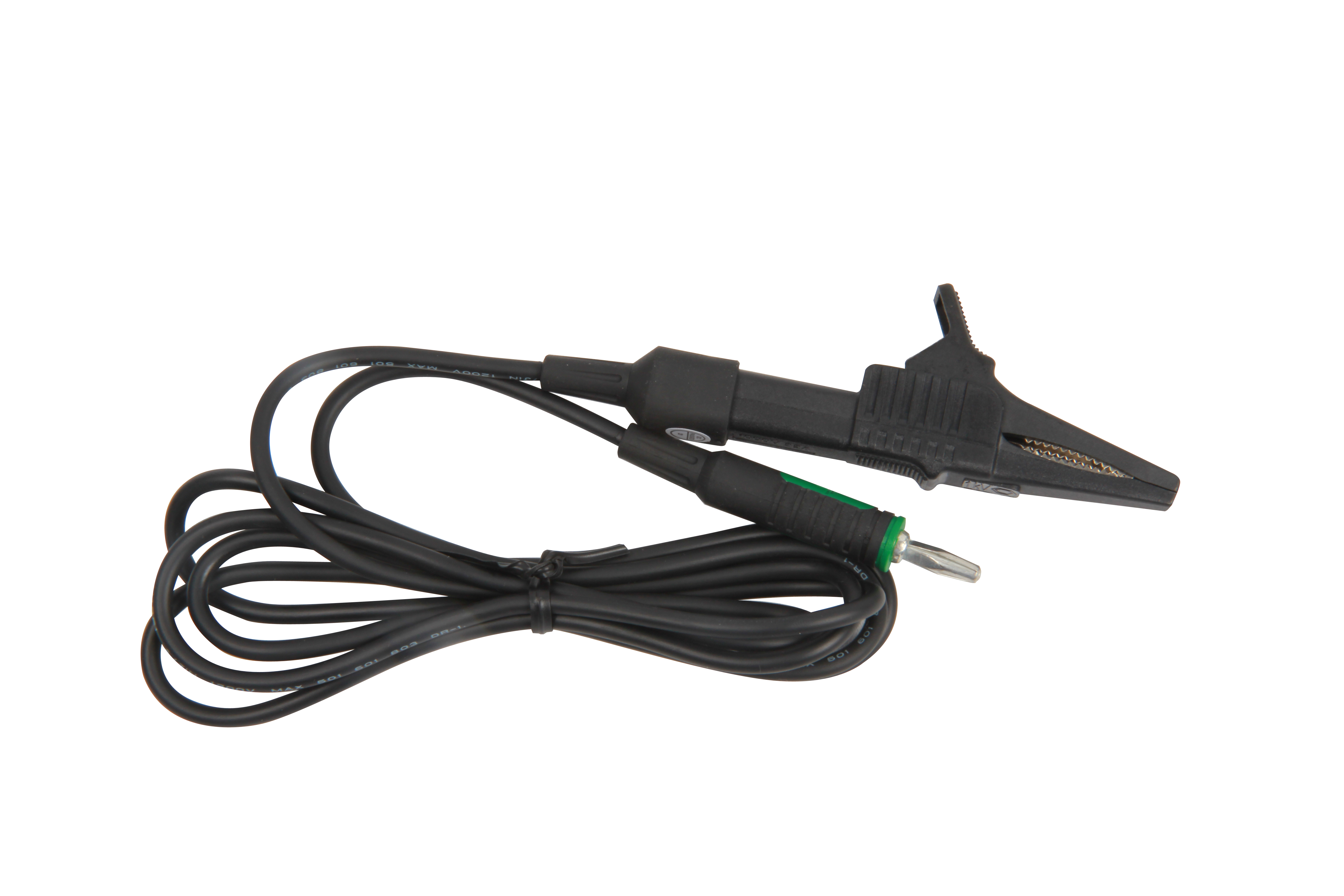

    VMI Pack / VMI2 Pack     Ground Cable

    G1FDDMN006 /

    Detachable rear module that enables G-scan2's oscilloscope, meter and simulation functions.

    Part of G-scan2 base unit, not sold separately. Includes rechargeable battery.



    G1FDDCA002

    Used for independent grounding of the VMI circuit for stable and accurate measurement

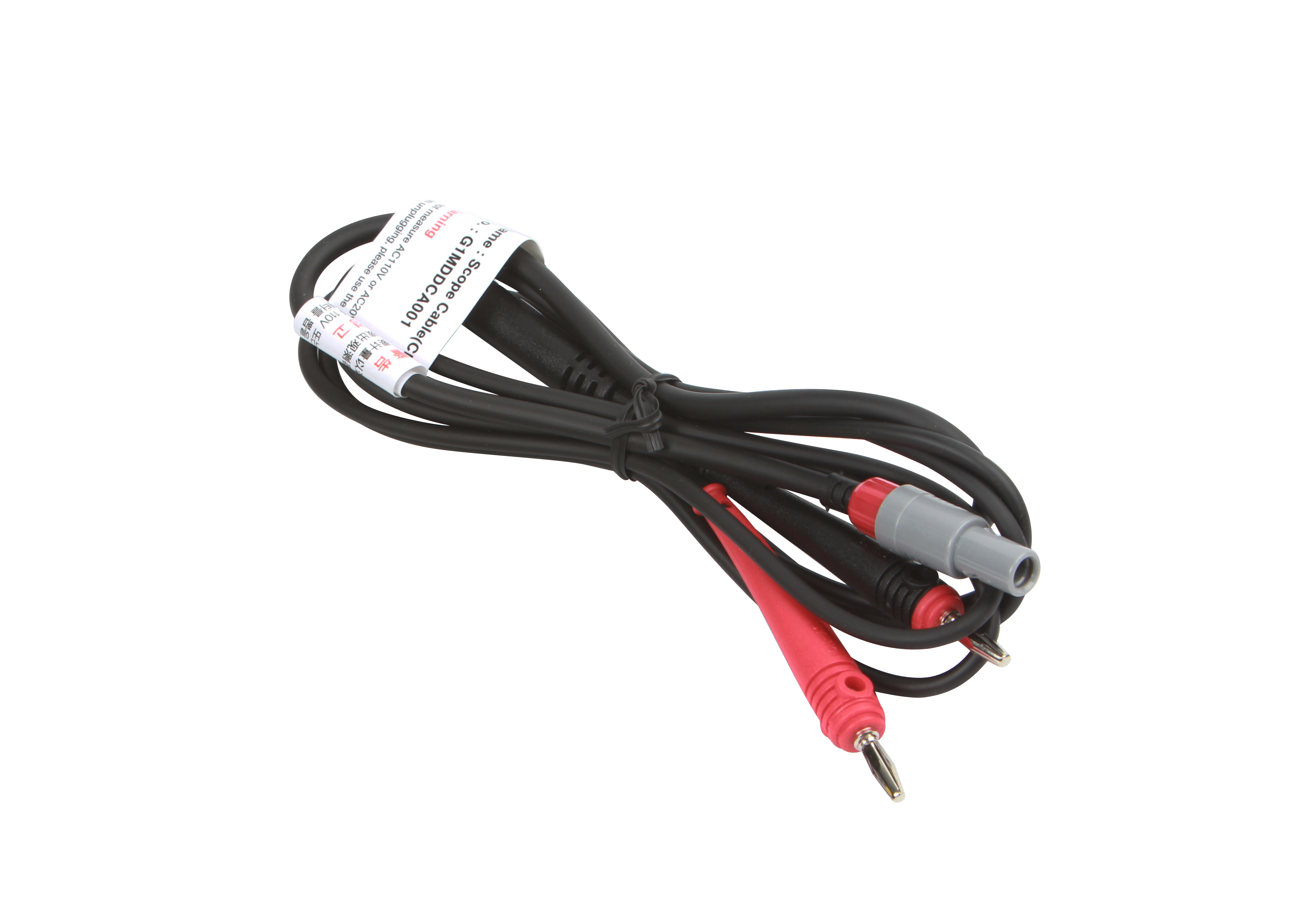

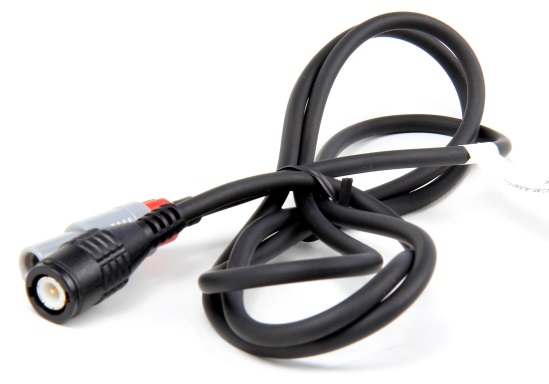

    Channel A Probe (Red)     Channel B Probe (Yellow)

    G1MDDCA001

    Connected to the red Channel A port of the VMI, used for acquiring electric signal from the wires or terminals



    G1MDDCA002

    Connected to the yellow Channel B port of the VMI, used for acquiring electric signal from the wires or terminals.

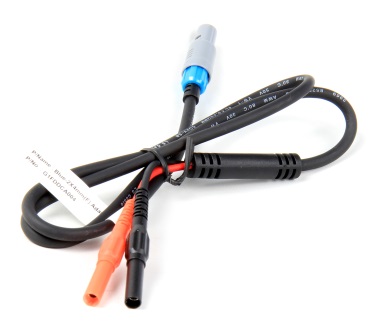

    Scope Pins (Red)     Scope Pins (Black)
    G1SDDCN005     G1SDDCN005
    (Part number shared)
    Spring Pin     Scope Clip (Red)
    G1SDDCN005
    (Part number shared)    		     G1SDDCN005
    (Part number shared)
    Scope Clip (Black)
    G1GDKCA006







    Optional Components for VMI/VMI2

    Parts available as optional supplies

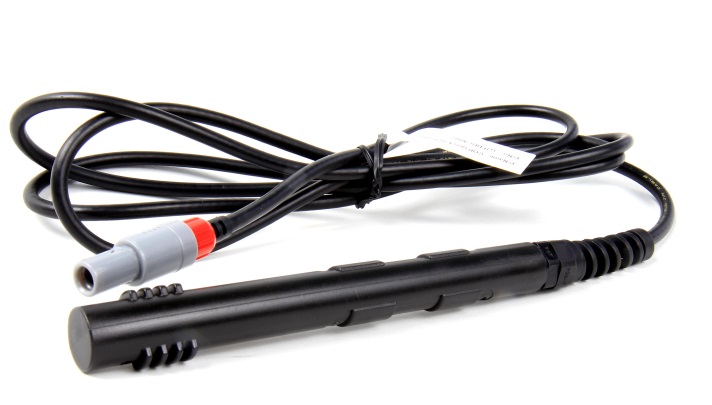

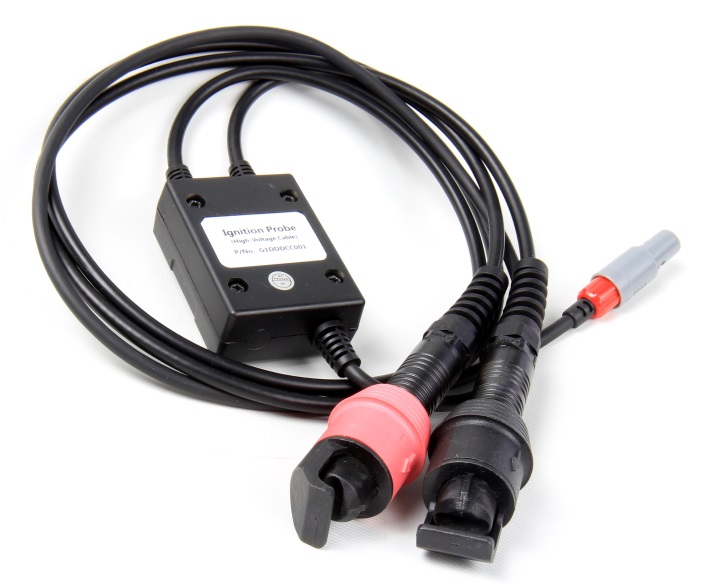

    COP Quick Pick-up Probe     Ignition Probe (High-Voltage Cable)

    G1FDDCA007

    Used for Secondary Ignition Waveform Function with the direct ignition type engines without exposed high voltage cords.



    G1DDDCC001

    Used for Secondary Ignition Waveform Function with the conventional distributor or

    DLI distributor-less engines with the high-voltage cords exposed.

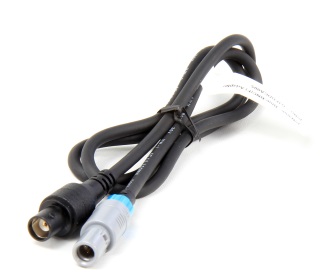

    Red - BNC (M) Adapter     Blue - BNC(F) Adapter

    G1FDDCA006

    Used with third party COP probes fitted with BNC adapter



    G1FDDCA005

    Used with third party Current Clamps fitted with BNC adapter

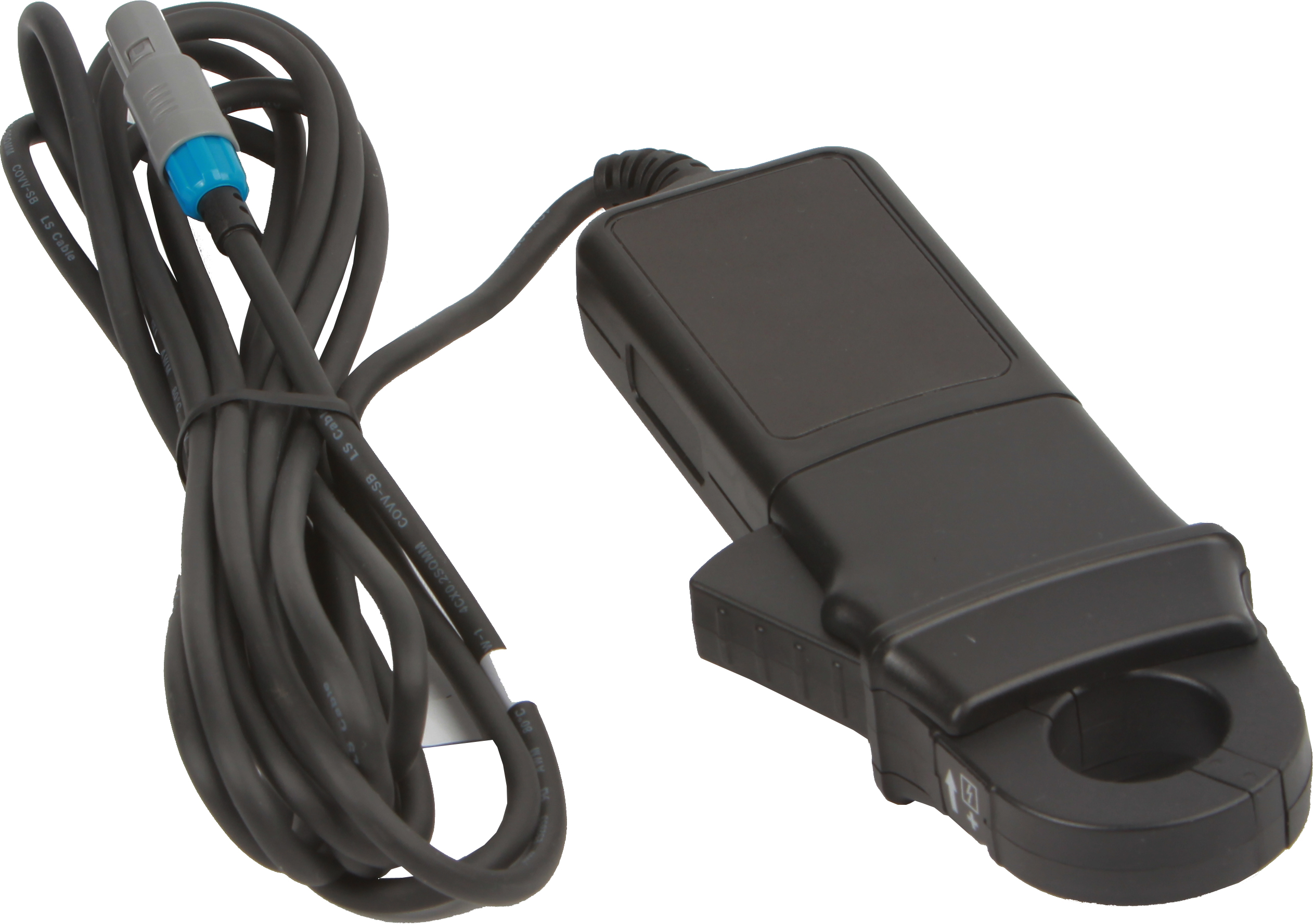

    Blue - 2X4mm(F) Adapter     Current Clamp (Large)

    G1FDDCA004

    Used with third party Current Clamps fitted with 4mm Banana Jacks



    G1GDKCA004

    Current Clamp, large current
    Used for measurement of large current of up to 100A or 1000A (switchable)

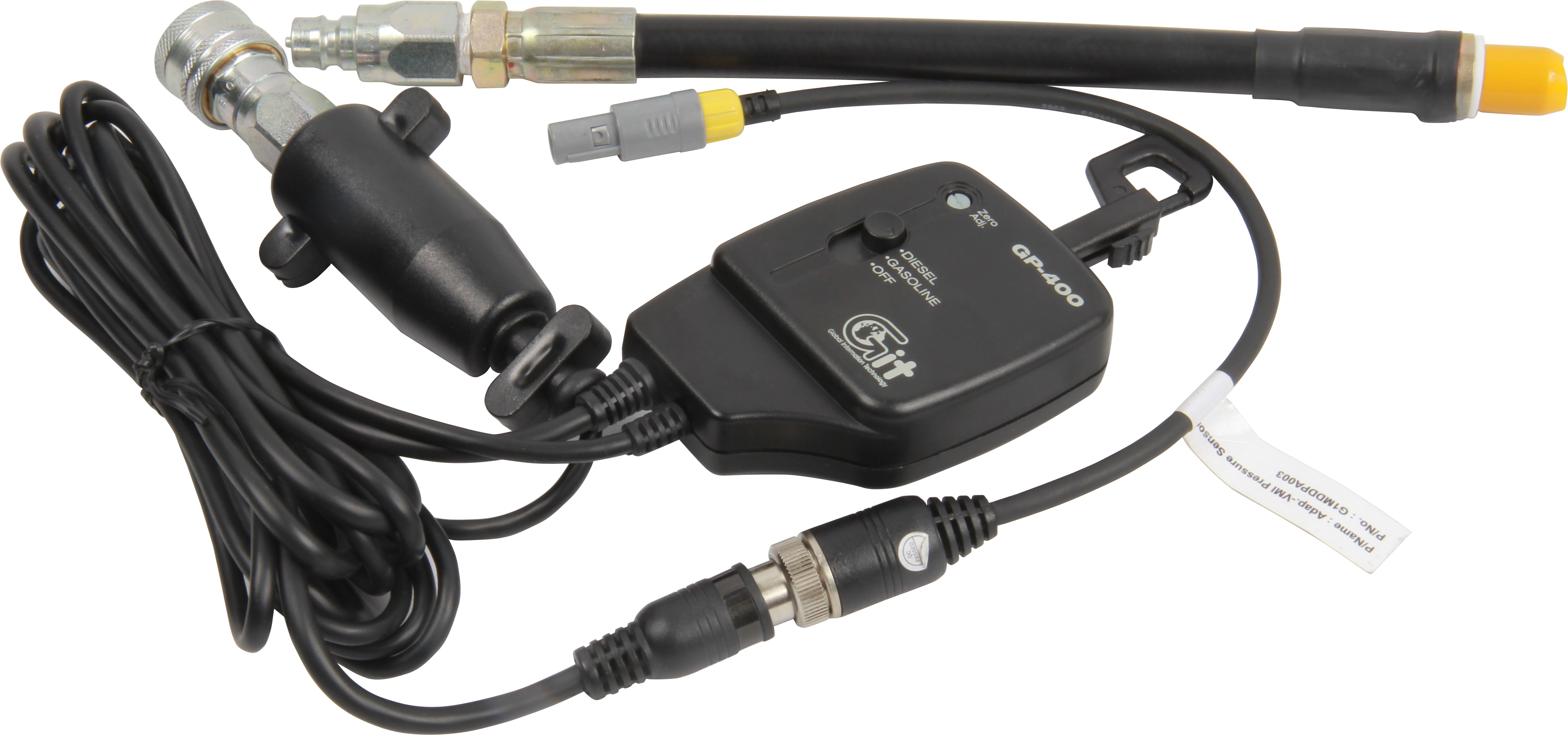

    Current Clamp (Small)     Pressure Sensor

    G1GDKCA008

    Current Clamp, small current
    Used for measurement of small current of up to 20A



    G1GDKCA006

    Used for measurement of pressure

    (Option: Hose)





    Optional Components for VMI2 only

    Parts available for VMI2 only

    Vacuum Sensor     Trigger Interface Module

    G1FDDCN001

    Measures vacuum level with attachment to the intake manifold

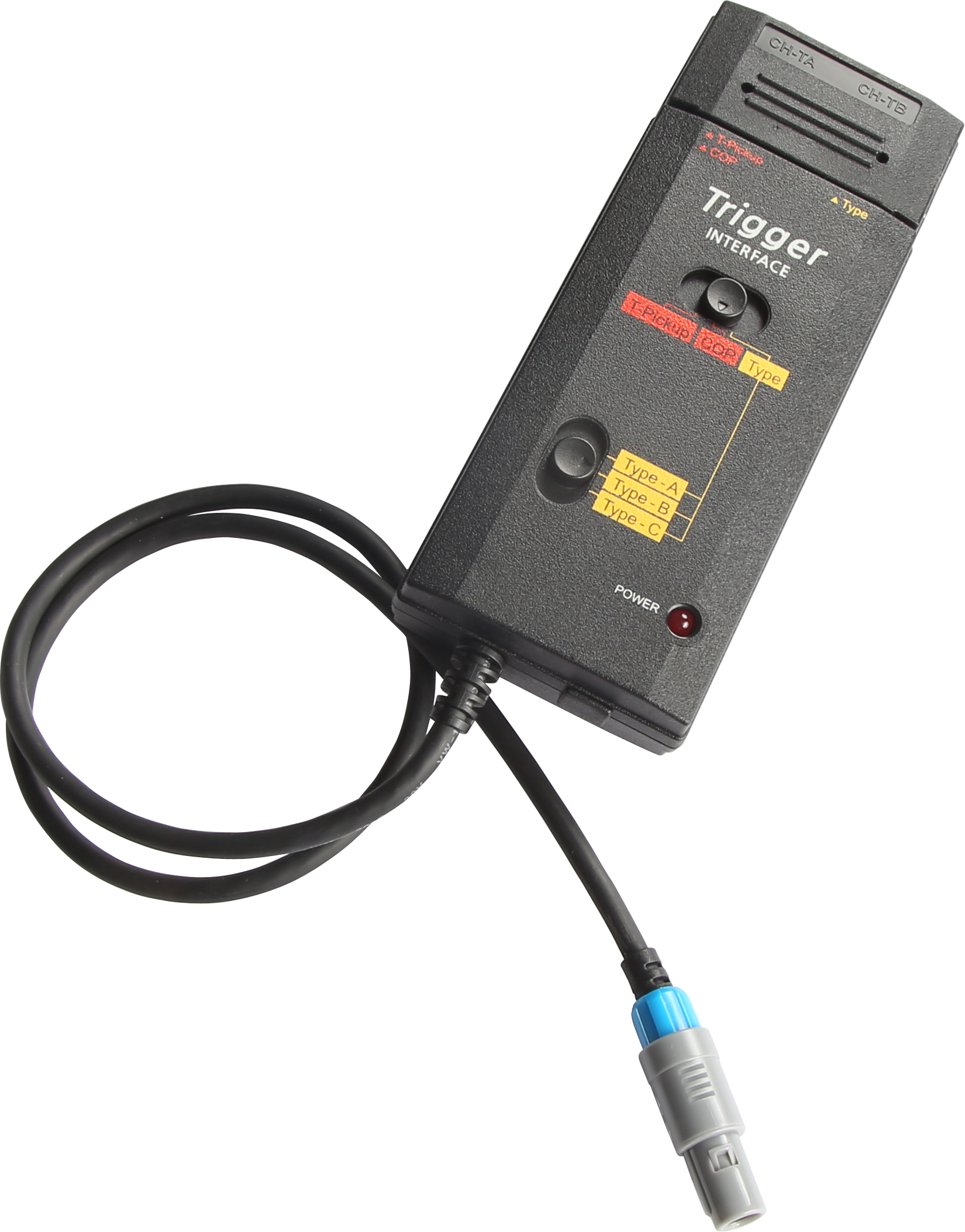

    G0FDDTN001

    Receives various trigger sources from gasoline and diesel cars through AUX channel

    and displays trigger signal such as engine RPM

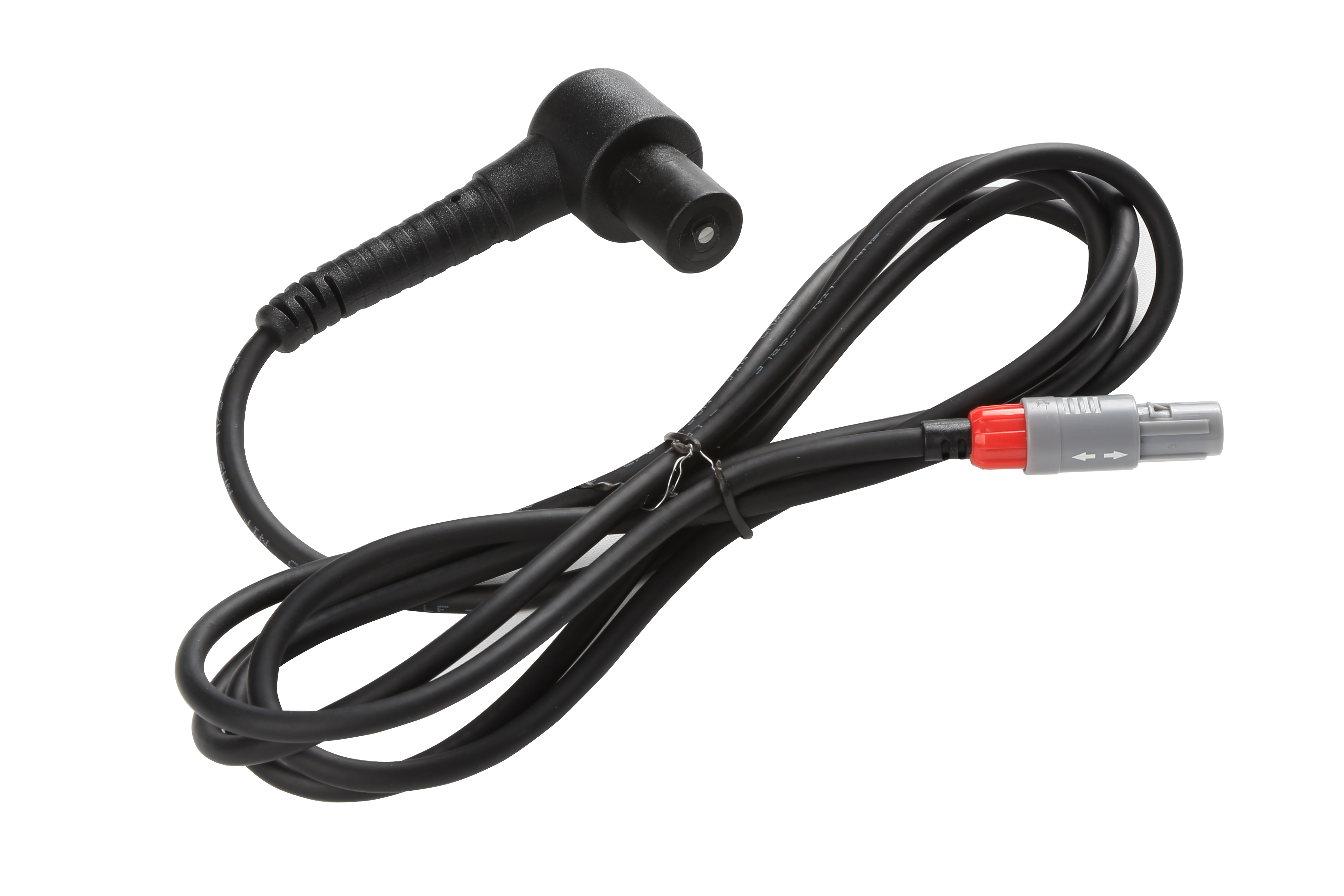

    Trigger Pick-up Sensor     Enhanced COP Pick-up Probe

    G0FDDTN002

    Used when receiving trigger signal from high voltage cable of distributor or DLI type ignition system



    G1FDDCA012

    Used when measuring secondary ignition voltage at Ignition Coil On Plug. (VMI2 Only)
