ZENITH Z7 PRO

A True All-In-ONE Scan Tool

An innovative wireless scan tool
designed to support a wide range of vehicle brands,
offering advanced bi-directional diagnostic capabilities for precise and efficient vehicle maintenance.

  • Features
  • Specification
  • Diagnostic
  • Component

  • Specification

    Category Specifications
    CPU Octa Core Processor 2.2 GHz
    Operating System Android 11
    System Memory 4G / Internal 64G **
    External Memory Micro SD Card Slot Supported (up to 256GB)
    LCD 10.1 inch FHD (1920 x 1200)
    Input Devices Capacitive Touch Screen, 3 Hard Keys (Power, Volume +, Volume -)
    Camera 8 megapixel auto-focus with LED flash
    Sound Loud Speaker 1 microphone
    Rechargable Battery Li-ion 3.85V, 5800mAh
    Operating Voltage Main Unit(DC5V)
    Sensors Ambient Light, Gyroscope, Accelerometer
    Dimension About 275 x 187 x 36mm(Terminal) About 170 x 124 x 32mm(VCI)
    External Port 1 x USB Type C (Special Locking Type Port)
    Network RJ45 Ethernet, Wi-Fi 802.11 a/b/g/n, Bluetooth 5.0, NFC

    Supported Communication Protocols

    CAN-FD, DoIP By-Pass, CAN (High speed, Low speed, Single)
    ISO-13400, ISO-11898, ISO-9141, ISO-9141-CARB, KWP-2000
    SAE-J1708, SAE-J1587
    J1850(PWM/VPW)
    Melco Pull-Down
  • Ultra Fast System Search
    Zenith offers ultra fast and auto system scan function that detects the VIN, model year, model name, engine type, and other necessary information that are retrieved.
    Topology Scan
    Zenith also offers ultra fast Topology scan function that scans all the vehicle systems, reports fault codes, and provides access to advanced diagnostic functions in each detected system.
    Service Function
    Time is money! Zenith offers shortcuts to the most frequently used functions in the workshops to save time for technicians to navigate through the original menu system.
    CAN FD & DoIP
    Zenith Z7 VCI supports the latest protocol including CAN FD & DoIP.
    FCA SGW Ready
    Zenith offers Security Gateway access on the latest Fiat, Chrysler models via AutoAuth.
    24V Trucks
    Zenith supports bi-directional communications for Asian light duty to medium duty trucks with 24V system.
    Full Text Description
    No more acronyms and cutting of significant texts. Zenith offers the long-text DTC description in full screen, so you get all the information you need. Zenith also allows users to view bigger texts by zooming in and out of DTC description with two fingers.
    Search DTC
    No need to going back and forth to search the DTC on the web. Simply hit the magnifying button next to the description!
    Live Data
    We understand that sensor data is important for professionals. Zenith offers intuitively designed and extremely fast Data Analysis where user can view/compare multiple live data with freedom of choice. Not only displaying multiple data in one screen, but Zenith also allows users to search and select desired items.
    Actuation Test
    Zenith offers not just simple actuation test function. We go next step to combine live data and graphing in actuation test, so that user can check the performance of the testing component live!
    J2534 Pass-thru
    Zenith acts as a J2534 Pass-thru device for multiple car makes with CAN-Bus, KWP2000, and ISO9141 protocols, supporting J2534 programming and diagnostics.
    Pre & Post Diagnostic Report
    Zenith offers easy creation of diagnostic report with Pre-scan and Post-scan result. Not only user can save the reports as PDF file, also with the help of its robust network connectivity, user can print the report directly with a blue-tooth printer or send them to desired E-mail address.
    Battery Management System
    EV, HEV vehicle’s Battery information such as SOC, SOH, Voltage, Current Value, Temperature of each cell is available to check in Battery Management System of ZENITH Z7

  • Pro Kit

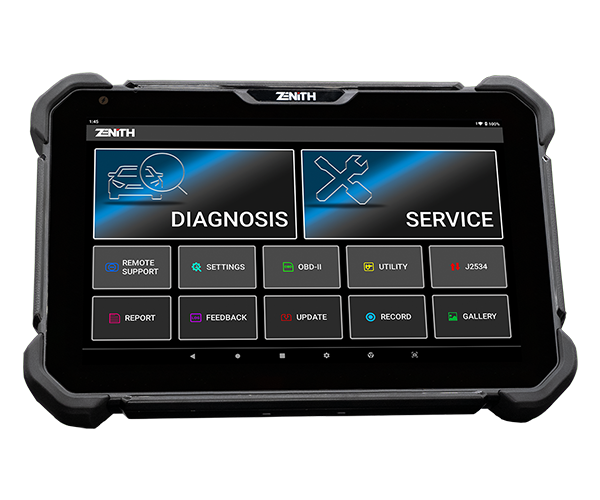

    Zenith Z7 Tablet

    EZ7MU001

    ZVCI2

    EZ7VC001

    Main DLC Cable

    EZ3CB001

    Z7 Charging Cradle

    EZ7CC001

    Z7 AC/DC Adapter Set

    EZ7CB011

    ZVCI USB Cable

    EZ7CB001

    Z7 Rear-Handstrap

    EZ7AC001

    Z7 Carrying

    CaseEZ7BX001

    Z7 Stylus Pen

    EZ7AC011




























    Optional OBD Adapters

    Parts available as optional supply



    Hyundai and Kia Wireless Key Connector
    EZ0CB012

    Used for some older Hyundai and Kia models, featuring special connectors for wireless key remote coding.



    Toyota 17+1P Square
    EZ0CB004

    Used for communication with older Toyota and Lexus vehicles with a 17+1 pin 'square (rectangular)' diagnostic connector located in the engine bay.

    Toyota 17P Round
    EZ0CB005

    Used for communication with older Toyota and Lexus vehicles featuring a 17-pin 'round (semicircular)' diagnostic connector. Make sure to verify the engraved name on the surface, which should match the Mazda 17P adapter.



    HONDA/ACURA 3P
    EZ0CB006

    Used to communicate with older Honda and Acura vehicles using 3-pin or 5-pin diagnostic connectors.

    MAZDA 17P
    EZ0CB007

    Used for communication with older Mazda models. Similar in appearance to the Toyota 17PR adapter, so be sure to check the engraved name on the surface.



    Subaru 9P
    EZ0CB008

    Used when communicating with older Subaru vehicles using a 9-pin diagnostic connector. (Excluded from the Asia kit due to regional preferences)

    Mitsubishi/Hyundai 12P+16P
    EZ0CB009

    Used to communicate with older Mitsubishi or Hyundai vehicles using either a 12-pin single or 12+16-pin dual diagnostic connector.



    Kia 20P-A Type Connector
    EZ0CB010

    Used for communication with older Kia vehicles featuring a 20-pin diagnostic connector located in the engine bay.

    Kia 20P-B Type Connector
    EZ0CB011

    Used for communication with older Kia vehicles featuring a 20-pin diagnostic connector located in the engine bay.



    Daewoo 12P
    EZ0CB015

    Used for communication with older Daewoo vehicles featuring a 12-pin diagnostic connector. (Excluded from the Asia kit due to regional preferences)

    Nissan 14P
    EZ0CB013

    Used for communication with older Nissan or Infiniti vehicles featuring a 14-pin diagnostic connector.



    Ssangyong 14P
    EZ0CB016

    Used for communication with older Ssangyong vehicles featuring a 14-pin round diagnostic connector located in the engine bay. (Excluded from the Asia kit due to regional preferences)

    Ssangyong 20P
    EZ0CB014

    Used for communication with older Ssangyong vehicles featuring a 20-pin square diagnostic connector located in the engine bay. (Excluded from the Asia kit due to regional preferences)





    J19399P+J17086P
    EZ0CB022

    Used for general communication with SAE J1939 compatible commercial vehicles.

    ISUZU 20P-10P-3P
    EZ0CB023

    Used for communication with older Isuzu commercial vehicles.



    BMW 20P
    EZ0CB019

    Used for communication with older BMW vehicles featuring a 20-pin diagnostic connector.



    Hyundai Commercial 16P
    EZ0CB025

    Used for most Hyundai and Kia commercial vehicles. Similar to standard OBD2 connector but with different internal wiring. Recognizable by its light gray color.



    Hyundai Commercial 4PC CNG
    EZ0CB026

    Hyundai CNG (Compressed Natural Gas) bus exclusive 4-pin round connector.

    HINO 12P-5P
    EZ0CB024

    Used for communication with older Hino commercial vehicles.



    AUDI/VW 4P
    EZ0CB020

    Used for communication with older Audi/Volkswagen vehicles equipped with a 4-pin diagnostic connector.
