SMALL BUT POWERFUL


No more diagnostic cables between your scan tool and a vehicle.
G-scan Tab is an affordable Tablet PC based diagnostic solution with Bluetooth technology
G-scan Tab shares the same database with legendary G-scan and G-scan2.

With already massive, yet constantly growing coverage, you can enjoy G-scan's brilliant software with choice of your own Windows based device.

  • Features
  • Specification
  • Diagnostic
    Function
  • Wireless via Bluetooth

    Wireless and reliable connection between the GVCI and the PC is made simple and easy via Bluetooth.

    Factory tool based Hyundai and Kia S/W

    Provides complete coverage for Hyundai and Kia cars based on Hyundai and Kia's GDS factory tools.

    Cost Efficient

    No need to pay for standalone scan tool's complete hardware. Save the cost by selecting an affordable Windows based tablet from the shop or by utilizing the laptop that you already own.

    Versatility

    Runs on a Windows based Tablet, or any standard Windows device including laptop and desktop PCs. *Minimum system requirement should be observed.

    No Pre OBD-II Vehicles Coverage

    G-scan Tab shares the same database (excluding OBD 1 generation vehicles) with G-scan and G-scan2.

    No 24V Commercial Vehicles Support

    G-scan Tab is not capable of accepting power and signals of 24V commercial vehicles.

    No J2534 Pass-thru Function

    G-scan Tab does not support J2534 function. G-scan2 is the only option as a Pass-Thru device for programming ECUs on both Hyundai and Kia vehicles.

  • ㆍGeneral Specification

    Specifications
    Memory Flash Memory 2Mbyte / SRAM 256Kbyte
    Operating Voltage 7~35VDC
    Dimension / Weight 58 X 74 X 36 mm / 90 g
    Wireless protocol Bluetooth 2.1 + EDR (2.4GHz)
    Indicators 2 LEDs (Front/Bottom)
    CAN CAN (High Speed, Low Speed, Single Speed)
    K-Line / L-Line ISO-1941, ISO-9141-CARB, KWP-2000
    Commercial Vehicle SAE-J1708 / J1587, J1850 (VPWM,PWM)
    Data / Control Line Melco Pull-Down

    ㆍSystem Requirements

    Display 1200 X 1800 or Higher
    CPU Intel Bay Trail-T Z3735F 64bit processor or later with greater performance
    RAM 2 GB or more
    Storage (C:) 15 GB or more free space
    OS Windows 10 (or later version)
    Wireless protocol Bluetooth 2.0 or higher
  • Smart Update
    When the Windows tablet or PC is connected to the internet, G-scan Tab connects to the GIT server through the internet, checks and downloads available updates and patches, and keeps the diagnostic database up to date.
    System and DTC Auto Search
    "System Search" option automatically checks all vehicle systems and reports fault codes, and provides access to advanced diagnostic functions available for each detected system.
    Live data
    As one of the basic diagnostic functions, G-scan Tab provides live data enabling users to monitor the system control unit's input and output side.
    Actuation Test
    Actuation test is another basic diagnostic functions that G-scan Tab provides. Users can check the control unit's operation by activating or deactivating the operation of an active component under control unit's command.

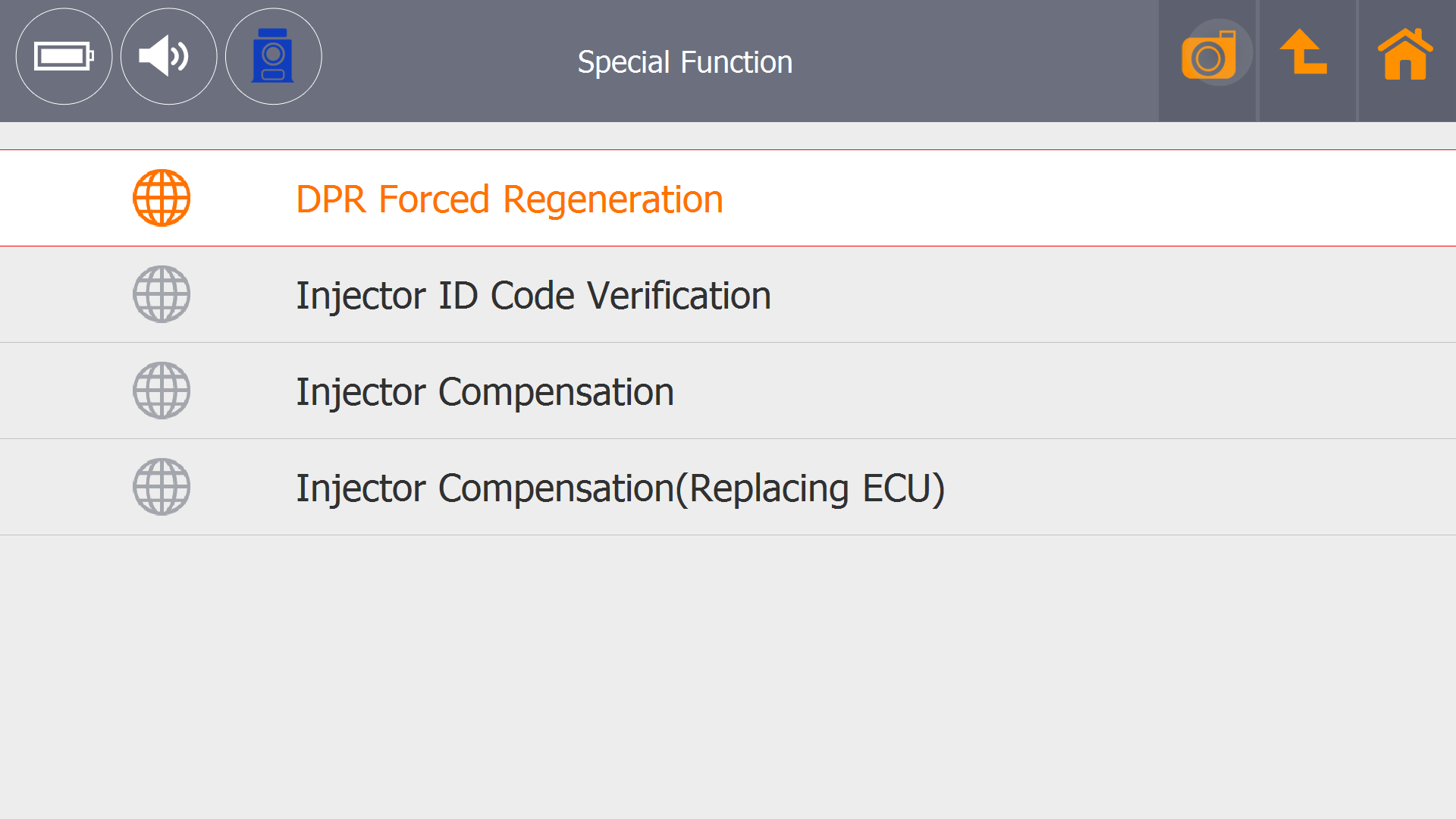

    Special Function
    In addition to the basic functions of DTC read/erase, Live Data, Actuation Test and ECU info, G-scan Tab provides various coding, learning and Initializing functions.
    Diagnostic Trouble Code
    DTC read and erase are the basic of the basic functions for diagnosis. G-scan Tab provide 2-line DTC description that shows the long-text DTC descriptions in full, no more acronyms or erasing to fit in the limited space.
    Data Graphing with Auto Scale
    Alpha-numerical value of live data can be switched to fast and responsive graph mode by a simple click. It instantly self-adjusts max and min scale helping users more accurately observe and compare the parameters.
    Data log and direct feedback
    In case of error or failure, users can log bi-directional data transmission between G-scan Tab and the vehicle. Log data can be sent to the engineers directly from G-scan Tab, which is responded within 24 hours on working days.
